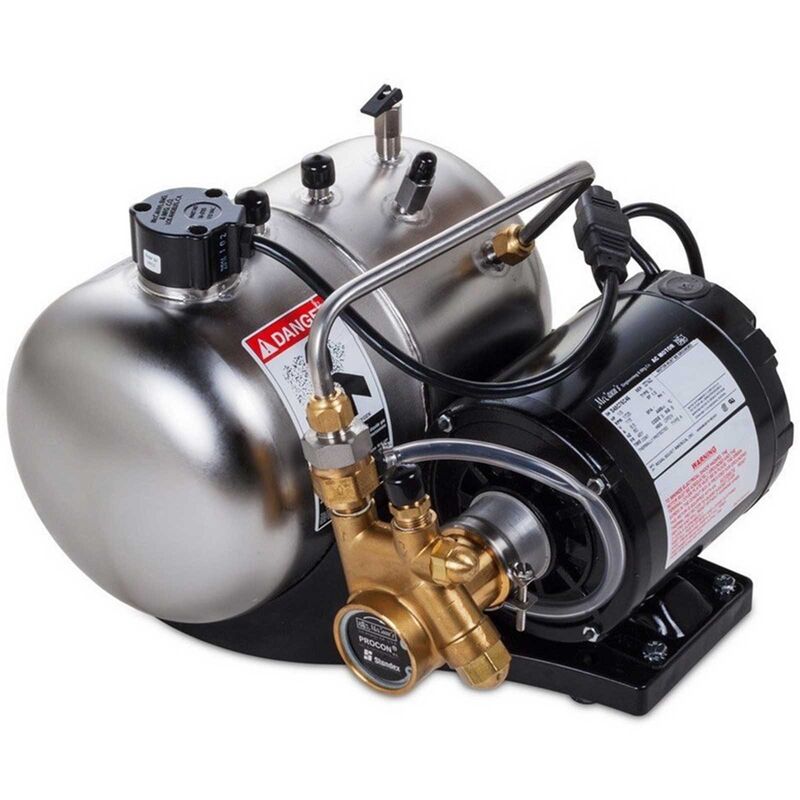

McCann's Big Mac Soda Carbonator - 2 Gallon

High-Capacity Carbonation for Soda Systems

This McCann's Big Mac unit is the workhorse of commercial soda systems. It mixes CO2 and water to provide a steady supply of carbonated water for your dispensers. With a 2 gallon stainless steel tank and a 1/3 HP motor, it's built to handle high-volume environments where a standard 1 gallon unit might fall behind.

Reliable Components and Connections

The unit features a brass water pump with an integrated strainer, delivering 100 GPH at up to 250 PSI. It includes an ASSE 1022 specified backflow preventer to keep your water supply safe and compliant with local codes. The electronics are fully encapsulated to protect against moisture, and the solid-state liquid level control ensures you don't run dry.

Installation is straightforward with standard flared fittings. It uses a 1/4" MFL connection for CO2 and 3/8" MFL for the water inlet. You'll find two 3/8" MFL soda outlets on this model, which allows you to run carbonated water to multiple stations from one tank. Rubber feet are pre-installed to help dampen noise during the pump cycle.

Highlights

• 2-gallon "Diamond Brite" stainless steel tank for high-volume use.
• 100 GPH brass water pump rated for 250 PSI.
• ASSE 1022 specified backflow preventer included for safety compliance.
• Dual 3/8" MFL soda outlets allow you to run multiple lines.
• Rubber-mounted feet reduce vibration and noise during operation.

Specifications:

• Solid-state, two-piece float/probe liquid level control
• “Diamond Brite” tank construction backed by a 5-year warranty
• 1/3 HP motor, 115VAC, 60Hz, 7 amps
• Durable brass water pump with built-in strainer; 100 GPH, rated to 250 PSI
• Rubber-mounted feet for improved sound insulation
• Fully encapsulated electronics package for added protection
• 1/4" MFL CO2 inlet, 3/8" MFL water inlet, and 3/8" soda outlet(s)
• Tank Capacity: 2 gallon
• Outlets: 2
• Shipping Weight: 28 lbs
• Dimensions: 10-1/2" H x 14" W x 13" D
