The Summit Classic Collection deluxe undercounter appliances bring luxury and elegant design into your home, bar or kitchen space.

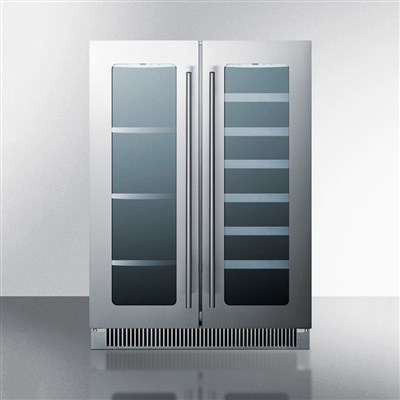

The CL242WBV/CL242WBVCSS is an undercounter wine and craft beer/beverage center with two independent temperature zones. It freatures two lightly tinted low-e glass doors with a French opening design. Seamless stainless steel trim blends right into the glass, while sleek handles and a signature kickplate complete the modern, elegant look.
The front-breathing design allows the CL241WBV/CL242WBVCSS to be built-in under counters, while the fully finished black (or stainless) cabinet also enables freestanding use. At just under 24" wide and deep, this unit is perfectly sized to fit common wet bar cutouts. The sealed back adds to the easy cleanability.
Inside, the CL242WBV/CL242WBVCSS includes a combination of wine and glass shelves. The wine shelves feature a stainless steel trim and black wire finish, while the craft beer and beverage shelves are made from unique frosted glass for spill-proof convenience. All shelves are adjustable and fit in either section, allowing you to fully customize your storage. The digital control panel makes it easy to manage the temperature in Celsius or Fahrenheit, keeping your red wine or bottled water at exactly the right setting. White LED lighting in each section offers an elegant yet energy efficient accent in the jet black interior. This model comes equipped with high/low temperature and open door alarms to ensure your collection is never exposed to improper temperature conditions. A conservation mode setting allows you to further save on energy use.
Fully featured for user convenience and beautifully styled for the home, the Summit CL242WBV/CL242WBVCSS wine cooler and beverage center offers the perfect storage solution for under the counter.
Summit CL242WBV/CL242WBVCSS Features
Built-in capable
Make the best use of space by installing your appliance under the counter
Low-e glass doors
Gently tinted glass provides a full view of stored wine while protecting your collection with energy efficient low-e glass
Seamless stainless steel trim
Glass is framed by seamless 304 grade stainless steel
Black or Stainless steel exterior
Cabinet is fully finished in black or wrapped in stainless steel for lasting durability (select option)
Digital thermostats
Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
Two temperature zones
Independent zones let you accommodate wine and craft beer at their proper storage temperatures
Stainless steel trimmed wire shelves
Jet black wine shelves slide out easily for wine storage, with a seamless stainless steel trim to finish the look
Adjustable glass shelves
Spill-proof glass shelves make it easy to store and display craft beer bottles and cans
White LED lighting
Unique white light offers elegant illumination for the jet black interior
Automatic defrost
Reduced user maintenance with automatic defrost operation
Fan-forced cooling
Internal fans ensure both interiors are evenly cooled from top to bottom
French door swing
Two side-by-side doors with French door opening
Stainless steel kickplate
Completes the professional look down to the toe kick
Temperature alarm
Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range
Open door alarm
Audible alarm will sound if the door is left ajar
Sealed back
Space saving design with easier cleanability
Energy conservation mode
Lets you disable some of the electrical features to save on energy use
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Summit CL242WBV/CL242WBVCSS Specifications
| Height of Cabinet |
34.5" (88 cm) |
| Width |
23.88" (61 cm) |
| Depth |
23.38" (59 cm) |
| Depth with Handle |
25.0" (64 cm) |
| Depth with door at 90° |
34.13" (87 cm) |
| Capacity |
5.1 cu.ft. (144 L) |
| Bottles |
21 bottles |
| Defrost Type |
Automatic |
| Door |
Glass |
| Cabinet |
Black (CL242WBV)
Stainless Steel (CL242WBVCSS) |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Amps |
1.5 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
125.0 lbs. (57 kg) |
| Shipping Weight |
130.0 lbs. (59 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101060125 |
|
Wine Cellar
|
| Number of Zones |
2 |
| Door Swing |
French |
| Reversible |
No |
| Adjustable Shelves |
Yes |
| Shelf Type |
Glass and Wire |
| Shelf Qty |
9 |
| Thermostat Type |
Digital |
| Interior Light |
Yes |
| Fan Type |
Interior and Exterior |
| Refrigerant Type |
R600a |
| Refrigerant Amount |
1.41 oz. |
| High Side PSI |
277.0 |
| Low Side PSI |
103.0 |
| Interior Height 1 |
26.0" (66 cm) |
| Interior Width 1 |
9.38" (24 cm) |
| Interior Depth 1 |
18.0" (46 cm) |
| Compressor Step Height |
4.38" (11 cm) |
| Compressor Step Width |
9.38" (24 cm) |
| Compressor Step Depth |
6.0" (15 cm) |
| Level Legs |
2 |
| Temperature Range |
41°F to 64°F |
| Interior Height 2 |
26.0" (66 cm) |
| Interior Width 2 |
9.38" (24 cm) |
| Interior Depth 2 |
18.0" (46 cm) |
Scroll to view product options.
| Item / Part # |
Cabinet |
|
|
|
Price |
|
Summit Undercounter / Bult-in Wine Cooler & Beverage Center w/ Glass Doors
SA-CL242WBV
|
Black |
|
|
|
$1,874.00 |
Add to Cart |
Summit Undercounter / Bult-in Wine Cooler & Beverage Center w/ Glass Doors (SS Cabinet)
SA-CL242WBVCSS
|
Stainless Steel |
|
|
|
$2,434.00 |
Add to Cart |
Scroll to view product options.
FAQs Summit Undercounter / Bult-in Wine Cooler & Beverage Center w/ Glass Doors
Have a question about this product?
Others probably do too! Ask a question and we'll follow up with you individually. If your question is added to our FAQ section, it will remain anonymous.
Be the First to Ask a Question
