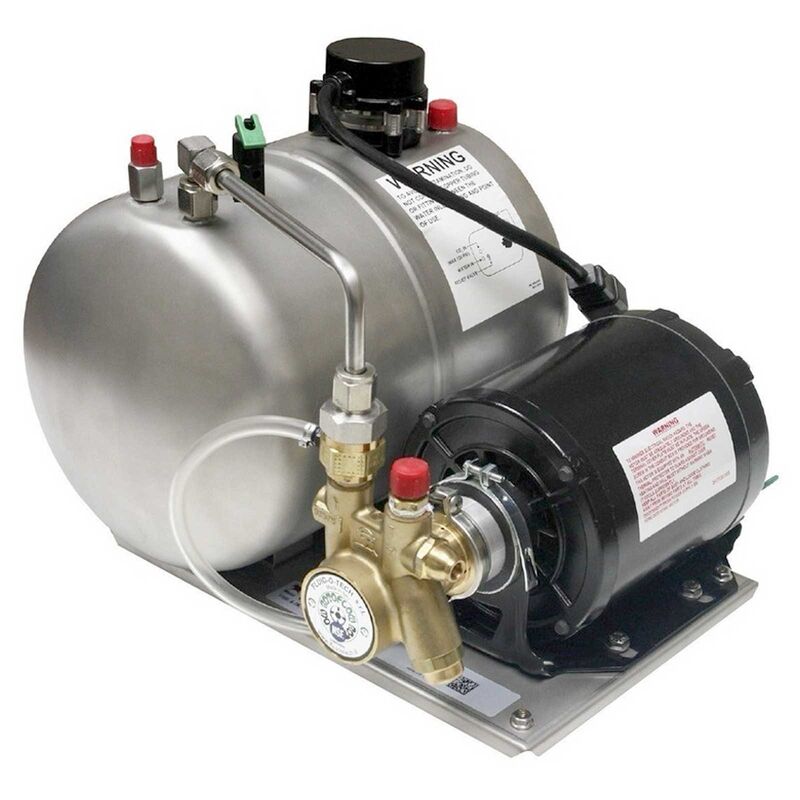

Schroeder Carbonator - 2.5 Gallon

Commercial Grade Soda Carbonator - 2.5 Gallon

The Schroeder 2.5-gallon carbonator is built to supply high volumes of carbonated water for soda fountains and sparkling water taps. It uses a solid-state control module instead of traditional floats and mechanical switches. This means there are no moving parts in the control system to get stuck or fail over time, making it much more reliable than older designs.

The unit features a 2.5-gallon stainless steel tank and a heavy-duty stainless base for long-term use in harsh environments. It's equipped with a 100 GPH rotary vane pump that includes an integrated strainer to protect the internal components from debris. It runs on standard 115V power and comes with 1/4" MFL and 3/8" MFL fittings for easy connection to your water and soda lines.

Highlights

• Solid-state control module has no moving parts to wear out or stick.
• 2.5-gallon stainless steel tank provides higher volume than standard units.
• Includes a 100 GPH rotary vane pump with a built-in strainer.
• Standard 1/4" MFL water inlet and 3/8" MFL soda outlet connections.
• Backed by a 5-year manufacturer warranty.

Specifications

• Voltage: 115V / 60 Hz / 1725 RPM
• Tank Capacity: 2.5 Gallon Stainless Steel
• Pump: 100 GPH NSF Rotary Vane Pump with Strainer
• Inlet Connection: 1/4" MFL
• Outlet Connection: 3/8" MFL
• Pressure Relief: 240 PSI Valve
• Certification: ETL Approved
• Dimensions: 14.75" W x 13" D x 11" H
• Weight: 30 lbs
• Warranty: 5 Year Manufacturer Warranty
