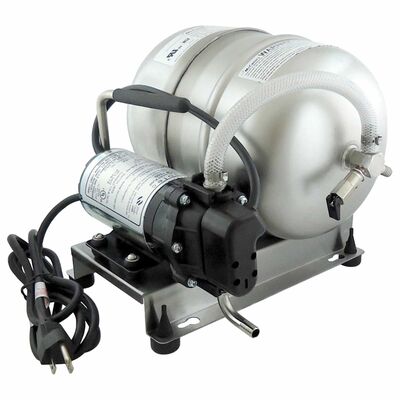

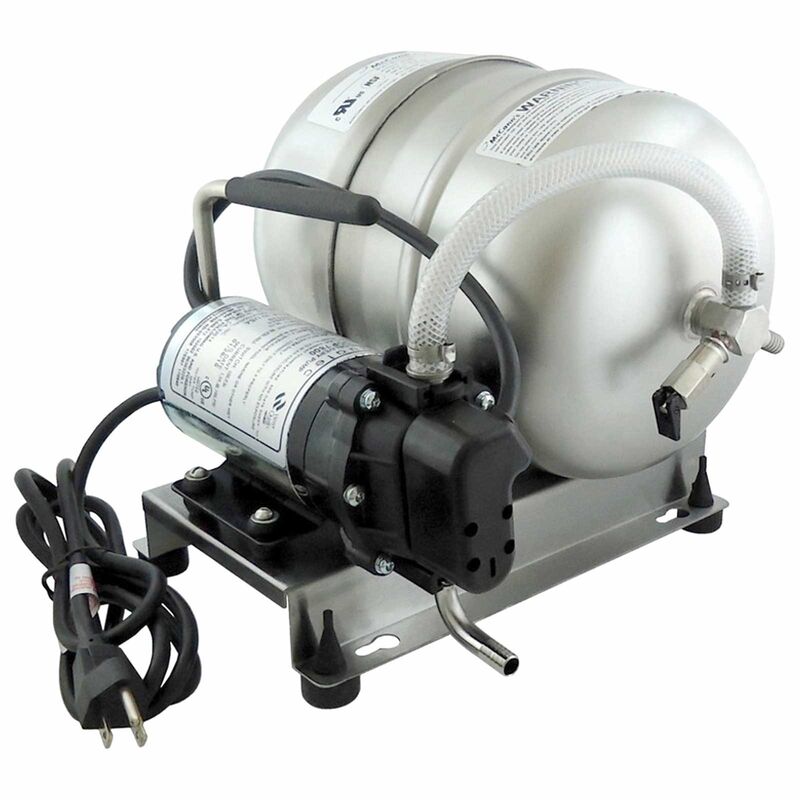

McCann's Water Booster System - 2 Gallon

Fix Low or Fluctuating Water Pressure

If your soda fountain, coffee brewer, or ice machine isn't getting enough water pressure from the tap, this McCann's water booster system is the standard solution. It's built to deliver a consistent 80-100 PSI to one or more beverage applications, ensuring your equipment operates correctly even when municipal pressure drops or is non-existent.

The system features a 1/5 HP motor and pump paired with a 2-gallon stainless steel accumulator tank. The tank holds pressurized water ready for use, which prevents the pump from constantly cycling on and off every time a valve opens. It's designed for quiet operation and can be mounted on the floor or a wall depending on your space requirements.

Technical Specifications

• Operating Pressure: 80-100 PSI (180 PSI relief on tank)
• Liquid Inlet/Outlet: 3/8" Barb
• Self-priming: Up to 10 vertical feet
• Accumulator Tank: 2 Gallons (Stainless Steel)
• Power: 115 VAC / 60 Hz
• Dimensions: 9-1/2" H x 15-1/2" W x 14" D
• Certifications: NSF and UL Listed pump and tank

This system comes ready to install with the motor, pump, and tank pre-mounted on a sturdy base. It's a common replacement for outdated booster systems in commercial kitchens and bars.

Highlights

• Delivers consistent 80-100 PSI to beverage dispensers and coffee equipment.
• 2-gallon stainless steel accumulator tank reduces pump cycling and wear.
• Self-priming capability up to 10 vertical feet.
• Quiet 1/5 HP motor and pump assembly suitable for front-of-house or back-of-house use.
• Universal 3/8" barb connections for easy integration into existing lines.
