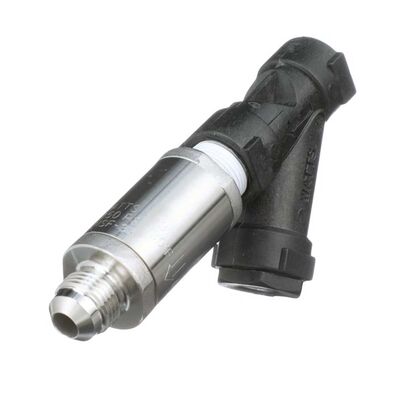

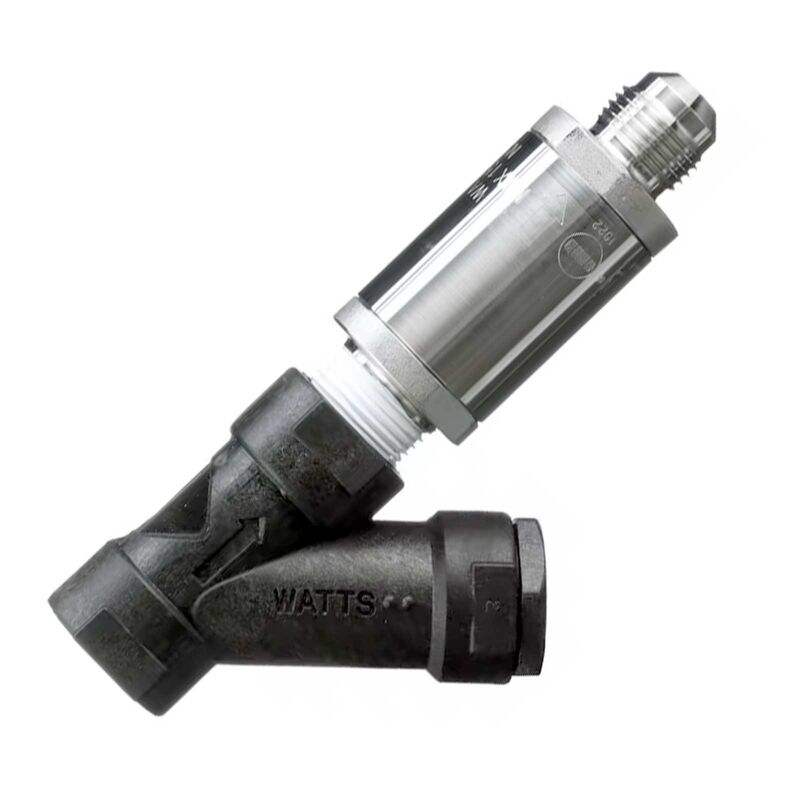

Backflow Preventer with Strainer (3/8" FPT x 3/8" MFL)
This backflow preventer stops carbonated water and CO2 from flowing back into your copper water supply. It's a standard requirement for soda fountains, carbonators, and coffee machines to prevent the acidic carbonated water from corroding your plumbing lines. The dual-check design provides two layers of protection, ensuring your fresh water stays clean.
This 3/8" dual check valve backflow preventer, equipped with an atmospheric port and built-in strainer, is designed for carbonated beverage systems. It stops contaminated water—such as carbon dioxide gas or carbonated water—from flowing backward into the potable water supply under backpressure conditions. The unit features a durable stainless steel body with internal rubber components and is suitable for both continuous and intermittent pressure applications. Its atmospheric port offers a visual alert if the second check fails, and the integrated wye-pattern strainer helps protect the system. Ideal for post-mix soda systems as well as tea and coffee dispensing equipment, it comes with a female NPT inlet and an SAE male flare outlet. Maximum working pressure: 150 psi (10 bar).
Features
- Stainless steel for corrosion resistance
- Includes strainer
- Can be installed vertically or horizontally
- For carbonated beverage machines
| Specification |
Value |
| Backflow Preventer Type | Dual Check with Atmospheric Vent |
| Body Finish | Stainless Steel |
| Body Material | Stainless Steel |
| Body Pattern | Does Not Apply To Product |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Bypass | No |
| Cap and Tether | No |
| Disc Material | Santoprene |
| EAN | 098268848953 |
| Elbow Fitting | No |
| Hazard Protection Level | Non Health Hazard |
| Hot and Harsh Water | No |
| Hydrant Connection | No |
| Inlet Connection Size | 3/8 IN |
| Inlet Connection Size (Metric) | 10 MM |
| Inlet Connection Type | Female Threaded |
| Inlet Shutoff Valve Type | No Shutoff Valve |
| Inlet Thread Type | NPT |
| Lead Free | YES |
| Maximum Temperature (°F) | 130 |
| Maximum Working Pressure (BAR) | 10.30 |
| Maximum Working Pressure (PSI) | 150 |
| Meter Type | No Meter |
| Minimum Temperature (°C) | 12.00 |
| Minimum Temperature (°F) | 54 |
| Outlet Connection Size | 3/8 IN |
| Outlet Connection Type | Flare Joint |
| Outlet Shutoff Valve Type | No Shutoff Valve |
| Outlet Thread Type | NPT |
| Part Number | 0061657 |
| Polymer Coating | No |
| Pressure Operation | Continuous |
| Protection Type | Backpressure |
| Seat Material | Noryl |
| Series | SD-3 |
| Strainer | Yes |
Highlights
- Prevents carbonated water from backing up into fresh water supply lines.
- Integrated strainer protects internal check valves from sediment and debris.
- Atmospheric vent provides a visual indicator if a check valve fails.
- Dual-check design offers secondary protection for beverage dispensing systems.
- Fits standard 3/8" FPT and 3/8" MFL beverage and water line connections.
Product Specifications
- Inlet Connection: 3/8" FPT (Female Pipe Thread)
- Outlet Connection: 3/8" MFL (Male Flare)
- Maximum Pressure: 150 PSI
- Maximum Temperature: 130°F
- Body Material: Lead-free brass / Stainless steel internals
- Type: Dual check with atmospheric vent
Specifications
| Inlet Connection | 3/8" FPT |
|---|
| Outlet Connection | 3/8" MFL |
|---|
| Maximum Pressure | 150 PSI |
|---|
| Maximum Temperature | 130°F |
|---|
| Material | Lead-Free Brass |
|---|
| Connection Type | Threaded/Flare |
|---|
