This 9.5mm x 1/4" male flared fitting is perfect for connecting to a 1/4" flared CMBecker disconnects and regulators. They have a female flair that will fit other male MFL flair fittings as well.
Keep the following in mind when using fittings:
- You need to cut your hose straight (not at an angle) and firmly push the hose into the fitting until it locks in place.
- If you need to remove the hose, but pull back on the collet.
- Can be used with liquid or gas. Made from acetal plastic and the orings are made from EPDM, which is chemical resistant.
- Do not use with chlorinated cleaning solutions including bleach. This will degrade the plastic.
- No clamps are used. The hose is clamped internally by the collet and orings.
- Temperature rated to boiling (212) and pressure rated to 150PSI.

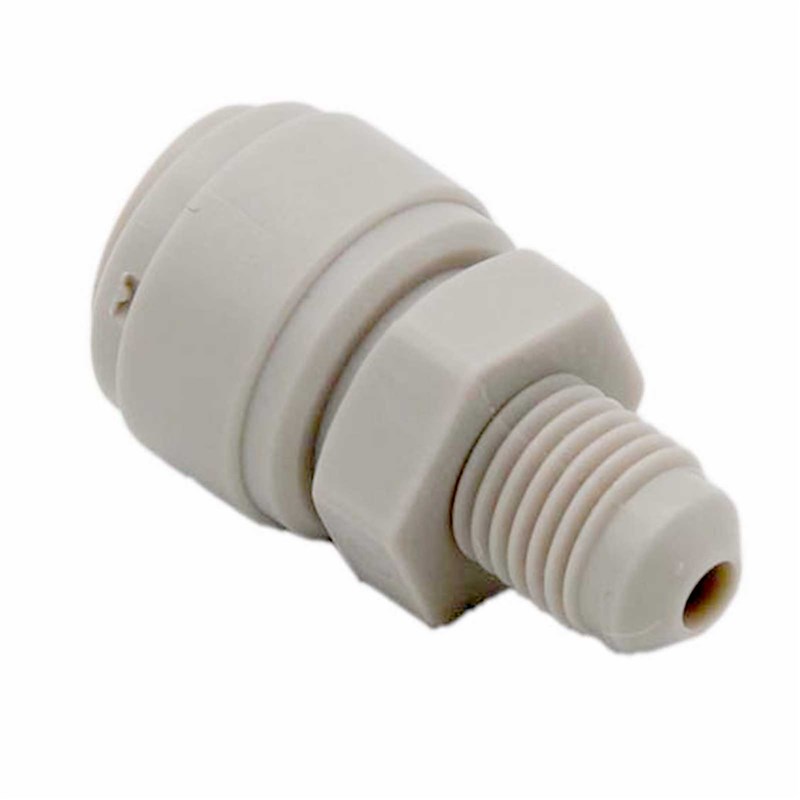

Push-In Fitting - 9.5 mm (3/8 in.) x 1/4 in. Male Flare
Scroll to view product options.
| Item / Part # |
Price |
|
Push-In Fitting - 9.5 mm (3/8 in.) x 1/4 in. Male Flare
PF-03
|
$3.95 |
Add to Cart |
Scroll to view product options.
FAQs Push-In Fitting - 9.5 mm (3/8 in.) x 1/4 in. Male Flare
Have a question about this product?
Others probably do too! Ask a question and we'll follow up with you individually. If your question is added to our FAQ section, it will remain anonymous.
Be the First to Ask a Question
