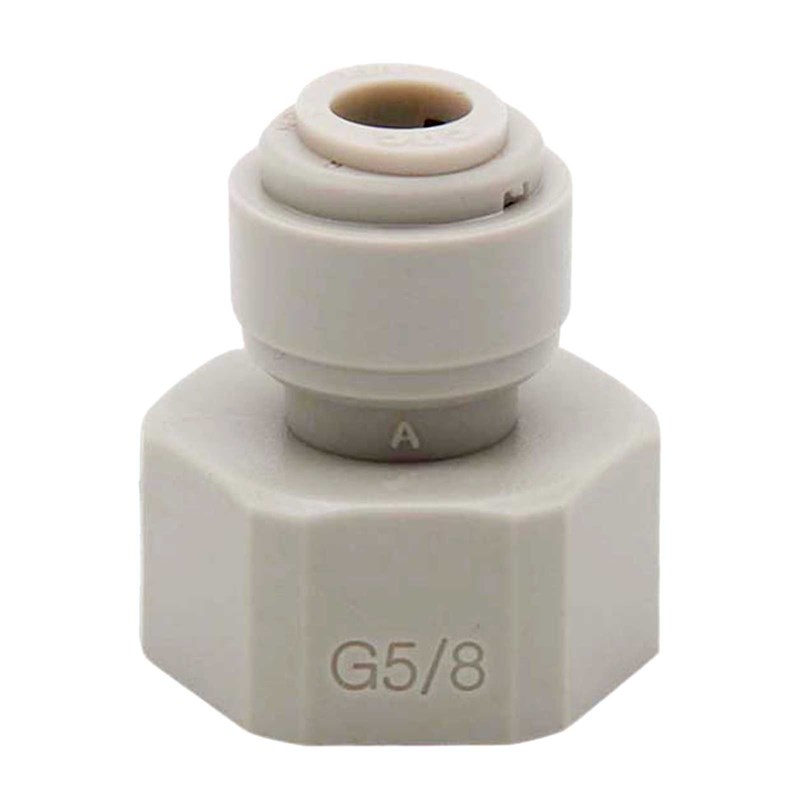

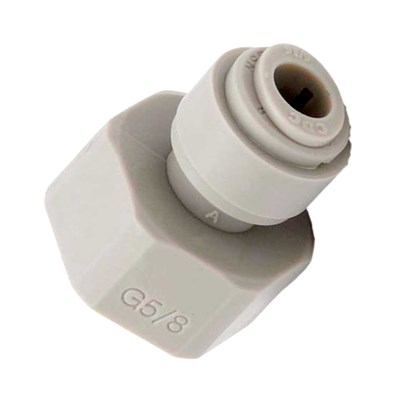

Push-In Fitting - 8 mm (5/16 in.) x Female Beer Thread

Push-In Fitting - 8 mm (5/16 in.) x Female Beer Thread for Standard Sanke Couplers and Beer Shanks

Use these fittings for attaching to a standard beer shank, or sanke D coupler.

These fittings are high-quality push-in fittings that seal tight and offer superior sealing capacity due to the double O-ring sealing design and NSF approved.

High Performance Double O-Ring Design:
The secret to superior sealing performance comes from the fact that they use not one, but two high-quality food grade EPDM O-rings.  The double O-ring means they have literally twice the sealing surface when compared with other push-in fittings.  This makes them more reliable and significantly reduces the chance of leakage.

The double O-ring system also means that tubing can be bent at a much tighter radius without causing leaking issues, which can be an issue with other fittings.

EPDM offers excellent chemical resistance for a longer life span. When compared with silicone and vinyl, EPDM has much better gas transmission rates, better wear resistance, and is BPA-free.

No Clamps Necessary!
We recommend cutting your tubing straight, not on an angle, to ensure the line forms a complete seal. To remove the fitting simply push in the collet and the hose can be removed.


Features:

• Insert tubing and firmly push to connect
• Easily release tubing by pushing in the collet
• Suitable for both gas & beverage applications
• Made from food-grade acetal plastic
• Double O-rings made from highly chemical resistant EPDM
• Locking teeth made from stainless steel
• Pressure rated to 150 psi
• Temperature rated to 212°F (100°C)

Please note: exposure to chlorine will degrade the acetal plastic and stainless steel these fittings are made from. Do not use in contact with bleach or other chlorinated cleaning chemicals.

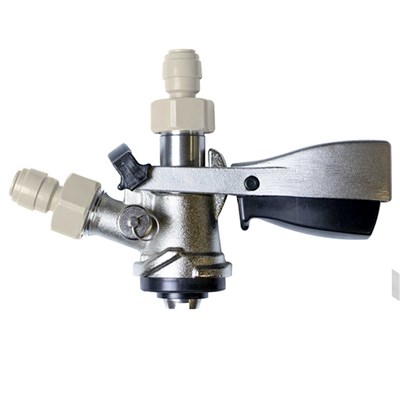

Coupler and shank not included, for illustration only.

(Same part as Duotight Part # DUO120)
