Tri-Clamp Pump - Ss Brew Pump

Ss Brew Pump with Triclamp Fittings

Unlock a World of Brewing Excellence:

Born from countless brew days in our garages, basements, and professional breweries, the Ss Brew Pump represents our refined take on an essential piece of brewing equipment trusted by homebrewers worldwide.

Designed to deliver reliable performance and easy operation, this pump features:

• IP55 Water Resistance Rating for durability in even the messiest brew sessions
• Magnetic Drive System for consistent, leak-free performance
• Sanitary 1.5” Tri-Clamp Center Inlet Head with a convenient DIN-style housing
• Built with quality and efficiency in mind, the Ss Brew Pump is ready to handle the rigors of your brew day—batch after batch.

Note: The Ss Brew Pump is not currently compatible with legacy versions of the Brew Cube | Pump Mount Plate Kit, Brew Cube | Valve Tree Manifold, or Portable Valve Tree. It uses a larger mounting plate with a different bolt pattern than the Chugger pumps these products were originally designed for. Updated compatible versions are in development and will be available soon!

What's Included:

• Ss Brew Pump

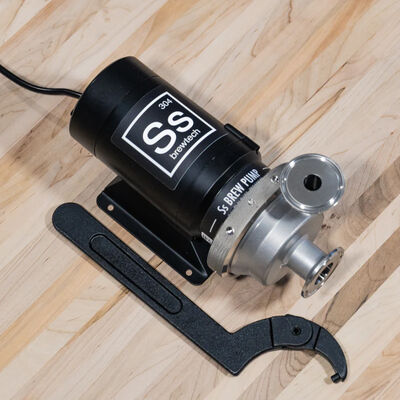

• 50-120 DIN Pin Wrench

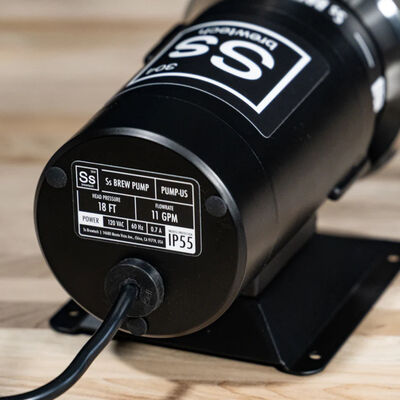

Product Specifications:

• Flow Rate: 11 gallons per minute (GPM)
• Maximum Head: 18 ft
• Ingress Protection: IP55 water-resistant
• Pump Head: Sanitary stainless steel with DIN fitting
• Inlet Connection: 1.5" Tri-Clamp (center inlet)
• Outlet Connection: 1.5" Tri-Clamp (center inlet)
• Power Requirements: 120 VAC, 60 Hz, 0.7 A
• Assembled Dimensions: 5.5” L x 4.5” W x 9.75” H
• Shipping Dimensions: 7.25” x 7.25” x 12”
• Shipping Weight: 11.75 lbs
