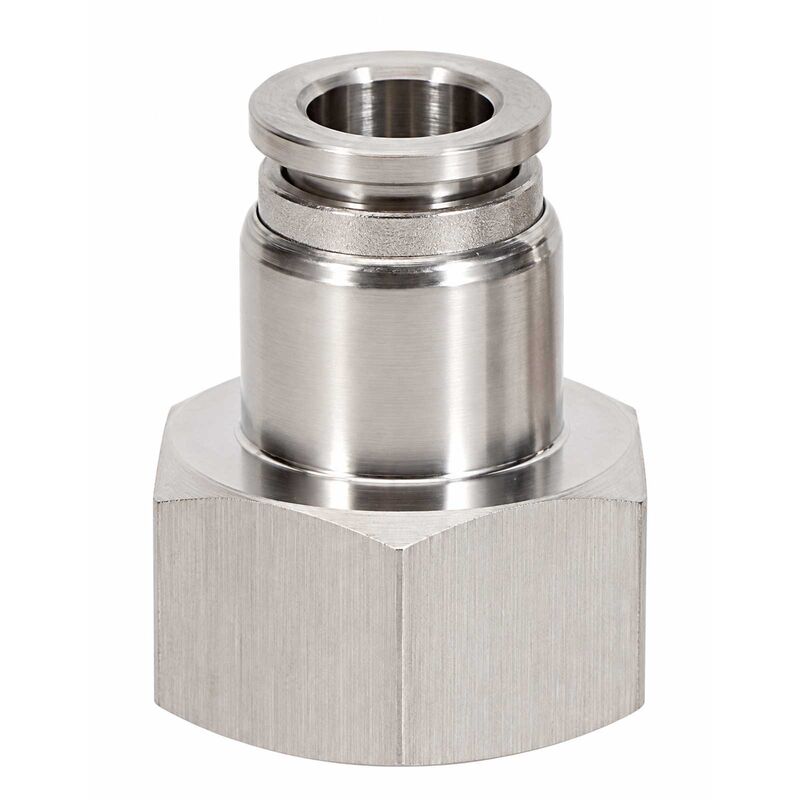

Stainless Steel Push-In Fitting - 8 mm (5/16 in.) x Female Beer Thread

Stainless Steel Push-In Fitting - 8 mm (5/16 in.) x Female Beer Thread

This fitting connects 8 mm (5/16 in.) tubing to a Female Beer Thread, so you can run a line straight to your couplers and shanks. The push-in side grabs your 8 mm line, and the female end threads onto any standard beer shank or coupler.

It's built from stainless steel and uses a dual seal o-ring, the same approach you'll find on Duotight-style push fittings. Two o-rings mean a more reliable seal and less chance of a slow leak on your gas or liquid line. And because it's stainless, it holds up better than plastic in high-use setups where fittings get connected and disconnected all the time.

How to Use It

• Cut your hose straight—not at an angle—then firmly push it into the fitting until it locks in place.
• To remove the hose, push back on the collet and pull the line out.
• Works with both liquid and gas lines. The o-rings are EPDM, which is chemical resistant.
• No clamps needed. The hose is held internally by the collet and o-rings.
• Don't use chlorinated cleaning solutions or bleach with this fitting. They'll degrade the seals.

Specs

Push-In Size

8 mm (5/16 in.) tubing

Thread Connection

5/8" BSP (Standard Female Beer Thread)

Material

Stainless steel

O-Ring Material

EPDM (dual seal)

Compatible Tubing

EVABarrier 8 mm OD

Highlights

• Connects 8 mm (5/16 in.) tubing to a female beer thread.
• Threads onto any standard beer shank or coupler.
• Dual EPDM o-ring seal for a more reliable, leak-free connection.
• Works with both gas and liquid lines.
• Fits EVABarrier 8 mm OD tubing—no clamps required.
• Stainless steel holds up better than plastic in high-use setups.

Stainless Steel Push-In Fitting - 8 mm (5/16 in.) x 5/8" BSP (Beer Thread)

(Same part as Duotight Part # DUO104)
