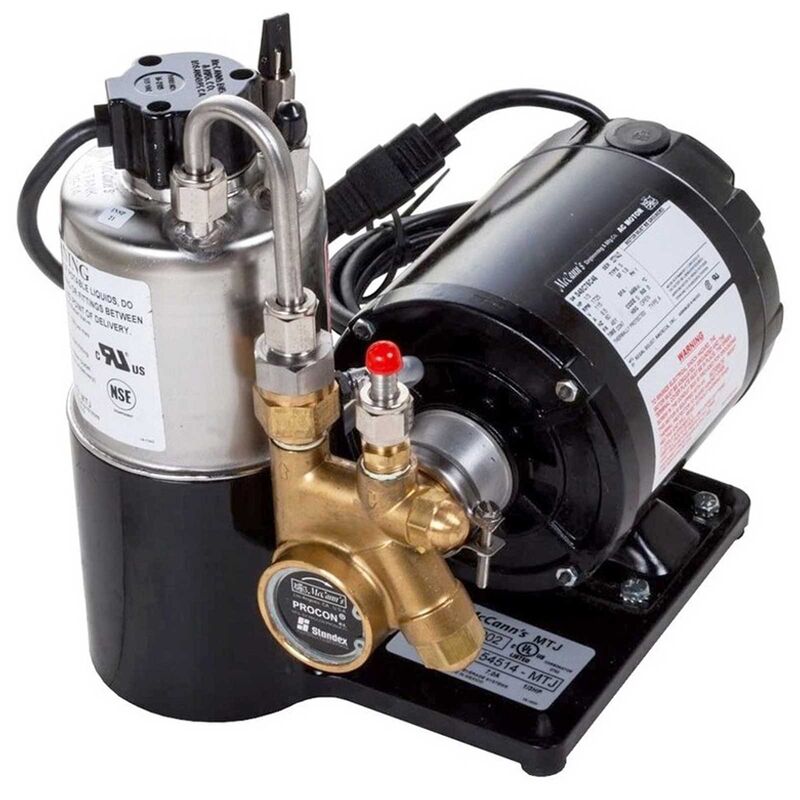

McCann's Small Soda Carbonator - 32 oz.

Commercial-Grade Carbonation for Soda and Sparkling Water

This McCann's carbonator is the industry standard for creating high-quality sparkling water at home or in a commercial bar. It uses a high-pressure rotary vane pump to force CO2 into water, giving you the sharp, consistent carbonation you need for soda fountains and craft beverages. Its compact 32 oz tank is ideal for setups where space is limited but you still need a reliable output.

The unit features a 1/3 HP motor and a durable stainless steel tank. It's designed to be plumbed directly into your water line and connected to a CO2 source. Most users run these at around 100 PSI to ensure the water is fully saturated with gas before it hits the faucet.

Installation is straightforward with standard flare fittings. You'll connect your water and CO2 lines to the 1/4" male flare inlets and draw your carbonated water from the 3/8" male flare outlet. It plugs into a standard 115V wall outlet, so no special electrical work is needed for most bars or kitchens.

Highlights

• Provides consistent, high-pressure carbonation for soda fountain systems.
• Compact 32 oz stainless steel tank fits easily under bars and counters.
• Reliable 1/3 HP motor and rotary vane pump for high-volume use.
• Standard 1/4" MFL water and gas inlets with a 3/8" MFL soda outlet.
• Plugs into any standard 115V AC grounded outlet.

Specifications:

• ASSE 1022–compliant backflow preventer

• Compact carbonator design

• 32 oz. tank capacity

• Single outlet configuration

• Shipping weight: 25 lbs

• Dimensions: 11" H x 9" W x 11.5" D

• Solid-state, two-piece float/probe liquid level control

• “Diamond Brite” tank with a 5-year warranty

• 1/3 HP motor, 115VAC, 60Hz, 7 amps

• Brass water pump with integrated strainer; 100 GPH, rated to 250 PSI

• Rubber-mounted feet for enhanced sound insulation

• Fully encapsulated electronics package

• Connections: 1/4" MFL CO2 inlet, 3/8" MFL water inlet, and 3/8" soda outlet(s)
