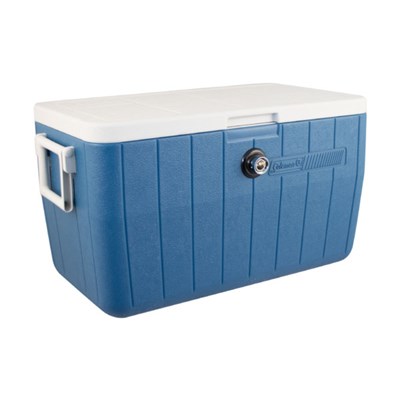

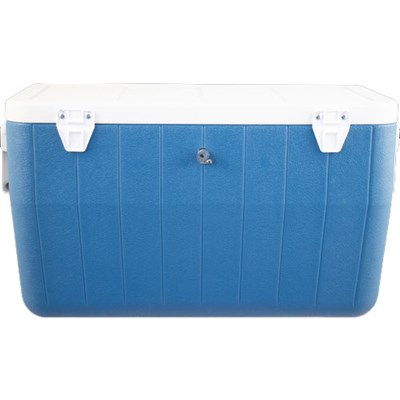

Single Faucet Jockey Box with Coil

This jockey box allows you to pour from a warm keg, and chill it on the fly to serve ice cold bere on demand!  Take it camping, tailgating, to events and farmers markets, or just pull it out when the gang is over.

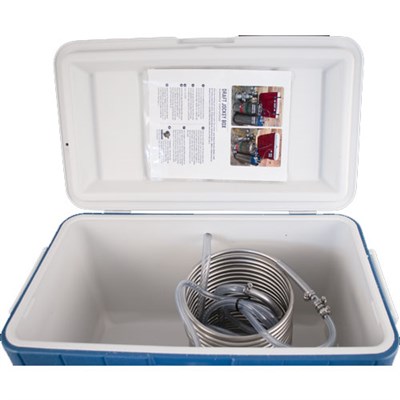

Draft boxes (Jockey boxes) are portable dispensing systems used to cool beer, soda, coffee, etc. as it travels inline from the keg to the faucet.  This jockey box includes a Rubbermaid insulated cooler, a 50' x 3/8" stainless steel coil, faucet, shank and beer line clamps. It does not include the connections needed to connect to your keg as many kegs use different connections.  You will need a Beer Line Connection Kit to connect this to a commercial sanke coupler. Or a ball lock disconnect to connect this to a ball lock corny keg.

Simply connect the beer line that is coming out of the back of the jocky box to your keg (after attaching the appropriate fitting for your style keg), and fill the coller with ice, and you are ready to serve ice cold beverages anywhere!

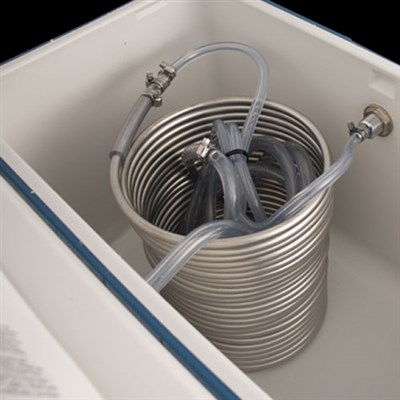

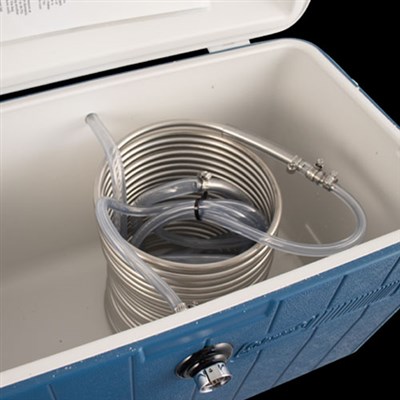

Our jockey box uses a larger 3/8" OD stainless steel tubing, which has two advantages over designs offered by other companies:

1) The larger diameter coils cools a greater volume of beer, and cools faster than many brands that use a 1/4" Diameter coil. The coil will hold approximately 33 oz of beer at a time!

2) The larger diameter line offers less resistance, which lets you push the beer with less CO2 pressure. Our boxes require about 10-15 psi from the CO2 tank to push the beer from the keg to the faucet (same pressure you use to dispense at home). Because the vast majority of beer lovers opt to keep their beer cool at all times to protect flavor (especially a homebrewer who is going to retap the same kegs at home!) and reduce foaming issues, most people opt to also ice the keg. The low applied pressure of 10-15 psi means that if you leave the system hooked up overnight, the beer will not over carbonate. If you do not plan on keeping the keg cold, which is perfectly fine, our system still works great because you can disconnect the line (if left for days) to keep the beer from losing carbonation.

We do not use shanks on the back side of our boxes. We drill holes slightly smaller than the line size so that a tight seal is created but you can still pull the line in when not in use, without having a wrench on hand. This makes storage and transport extremely easy. You will appreciate not having lines flopping everywhere.

You will need to purchase the appropriate tap for your needs, be it commercial or homebrew quick disconnects. You will also need a CO2 system, comprised of a CO2 tank and regulator.

Tips For Best Results:

• It is much more likely for a beer left at a high psi to over-carbonate (become foamy) than a beer left at a low psi to lose carbonation. The reason is that gas will always keep coming from the regulator until the gas/beer pressure have reached an equilibrium, so over time the high psi setting becomes the pressure in the beer. However, for a beer to lose carbonation it has to come out of solution into the headspace in the keg. Because the head-space is limited, only so much CO2 can come out, and the keg pressure will not drop all the way down to the lower regulator pressure on its own. This is the reason that if you have over-carbonated a beer you have to repeatedly vent the keg, reducing the pressure in the head space to 0, and allowing more gas to escape from the beer.
• For the best performance when using a draft box, tests have shown that ice water is actually the most effective at cooling the coils. So, as the ice melts, DO NOT OPEN THE VALVE ON THE COOLER. Draft boxes with Cooling Plates (stainless coil embedded in aluminum) are designed to work with the valve open, ours is not.
