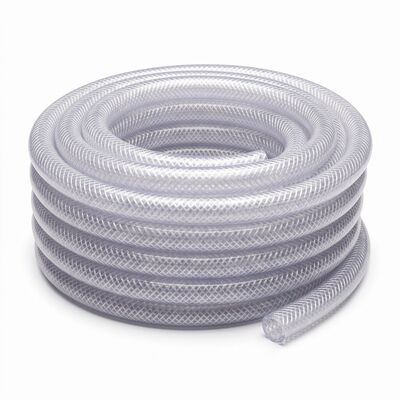

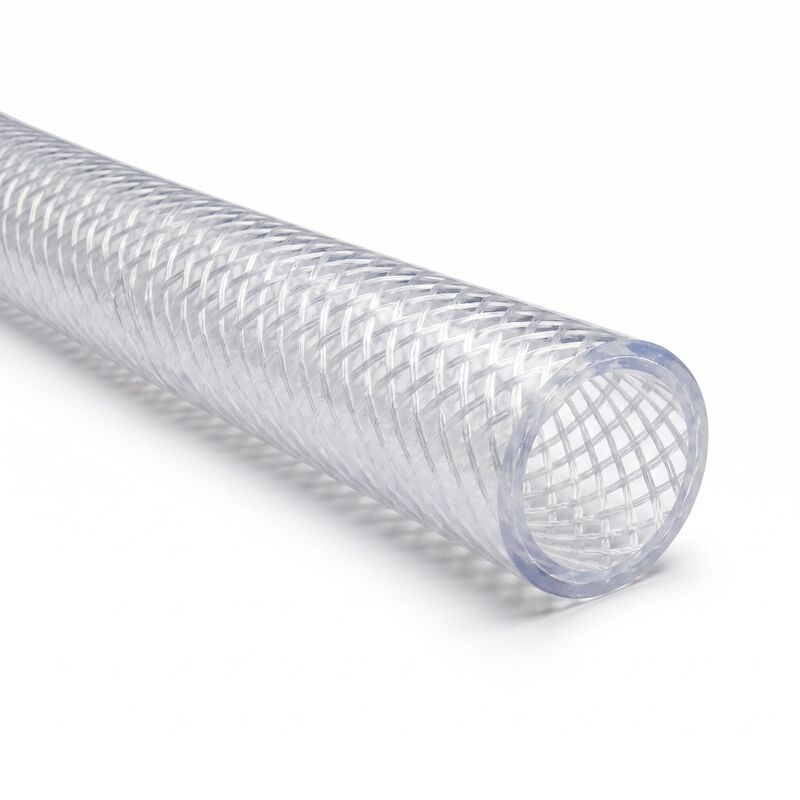

CLEARBRAID® K3150 Series Reinforced PVC Beverage Hose (3/4" ID)

Highlights

• 3/4" ID handles higher flow than standard beer line for trunk lines and supply runs.
• Clear bore lets you see product flow, air pockets, and CIP cleaning solution.
• Spiral polyester braid holds 150 PSI and resists kinking and ballooning.
• Rated for both pressure and vacuum service on transfer setups.
• FDA compliant and NSF-51 listed for food contact applications.

CLEARBRAID® K3150 Series Reinforced PVC Beverage Hose (3/4" ID)

If you're running beverage lines, transferring potable water, or moving food-grade product through your system, the Kuriyama CLEARBRAID K3150 is a clear, reinforced PVC hose built for exactly that. The 3/4" inside diameter handles higher flow rates than smaller beer line tubing, so it's a common pick for trunk lines, supply runs, and equipment hookups where you don't want to choke your flow.

It's made from a non-toxic, food-grade PVC compound that's clear all the way through. And that clarity isn't just cosmetic - it lets you see what's moving through the line, spot air pockets, check for product buildup, and confirm your cleaning solution is actually flowing during CIP. The smooth bore keeps flow consistent and makes the hose easy to flush and sanitize.

Braid Reinforcement

The wall is reinforced with a spiral polyester braid. That braid is what gives the hose its working pressure rating and keeps it from ballooning or kinking under pressure. You get flexibility for tight routing without the line collapsing on a bend. It handles vacuum service too, so it works on both the pressure and suction sides of a transfer setup.

Where It's Used

This hose shows up in soda systems, draft beer trunk lines, water supply runs, beverage dispensing equipment, and general food and dairy transfer. It meets FDA requirements for food contact and is NSF-51 listed for food equipment materials. If your application requires compliance, this hose checks those boxes.

Specs

• Inside Diameter: 3/4" (0.75")
• Outside Diameter: 1.06"
• Material: Clear food-grade PVC with spiral polyester braid reinforcement
• Max Working Pressure: 150 PSI at 70°F
• Temperature Range: 14°F to 150°F
• Reinforcement: Spiral polyester braid
• Compliance: FDA, NSF-51

Keep in mind that working pressure drops as temperature rises, so size your application around the conditions you'll actually run. For long-term setups, secure your fittings with proper clamps rated for the hose OD to avoid blow-offs under pressure.
