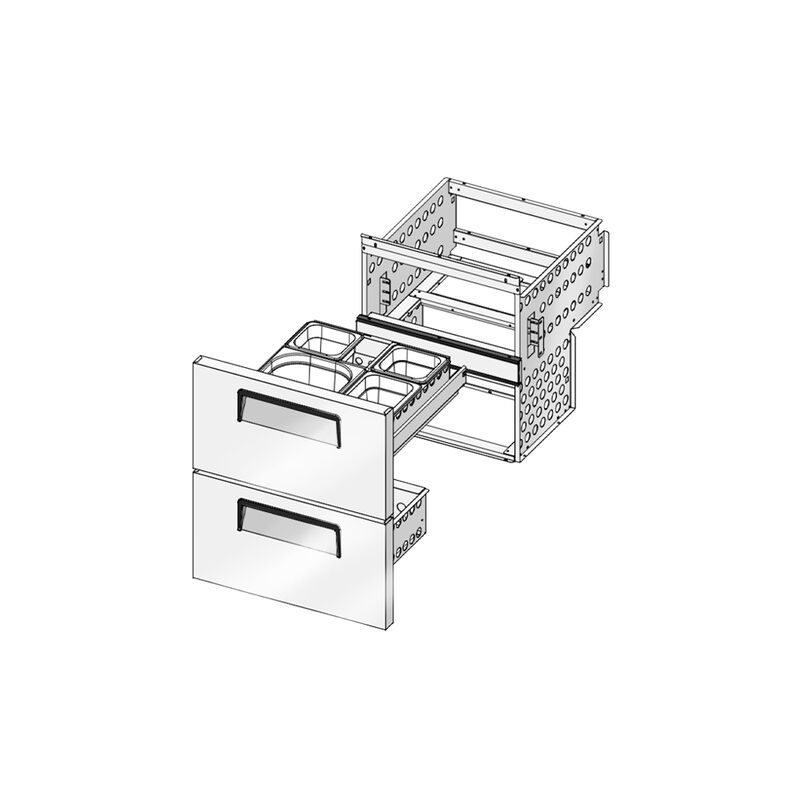

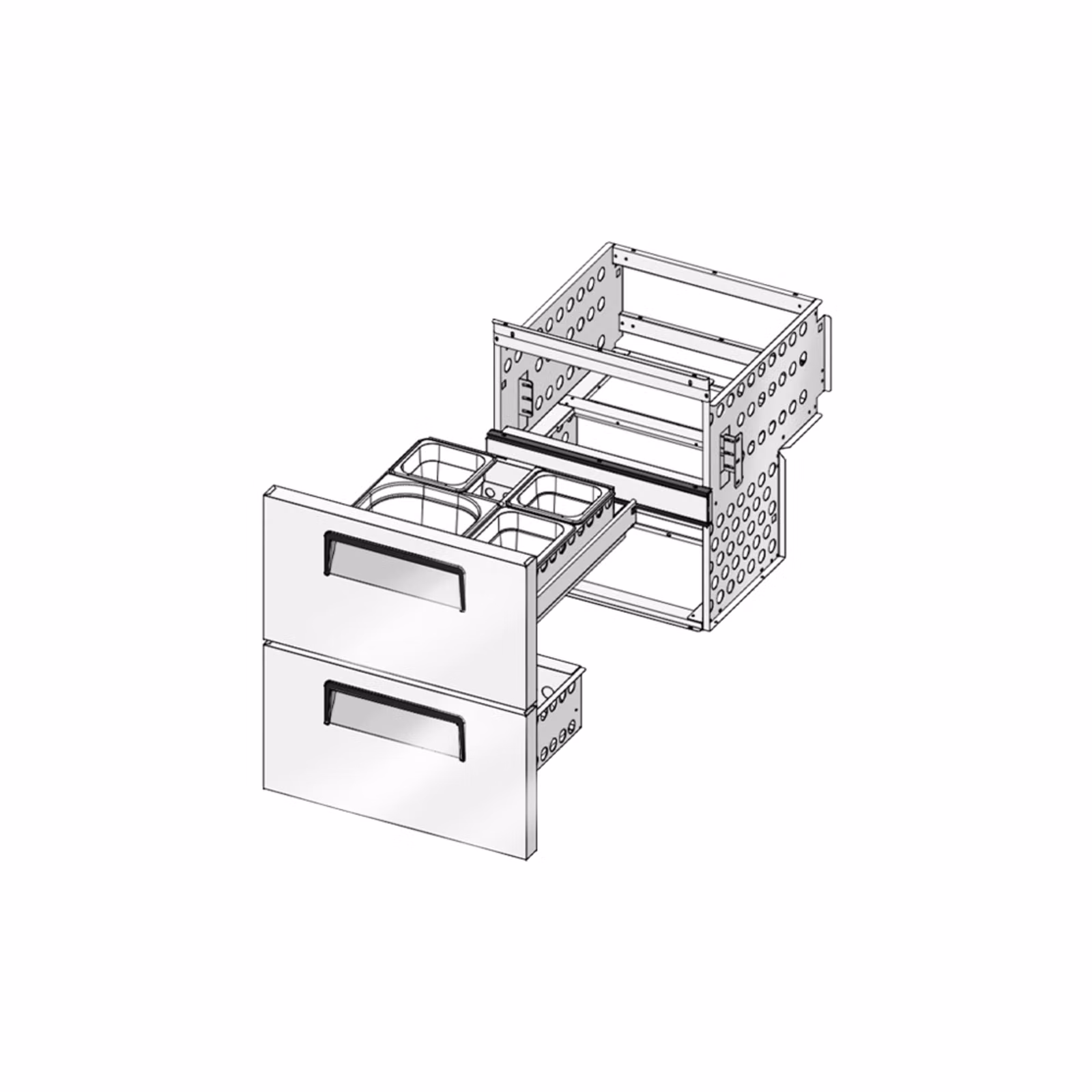

Atosa MSF8312227A00 Drawer Cartridge for MSF8303GR, MSF8307GR, MGF8403GR, MGF8410GR

The Atosa MSF8312227A00 is a field-retrofittable drawer cartridge for prep tables, built to replace a standard door section on the Atosa MSF8303GR, MSF8307GR, MGF8403GR, and MGF8410GR. It installs into the existing cabinet and turns that space into two refrigerated drawers for pan storage.

Highlights

• Fits Atosa MSF8303GR, MSF8307GR, MGF8403GR, and MGF8410GR prep tables.
• Top drawer holds three 1/6 and three 1/3 pans, or nine 1/6 pans, at 6 in depth.
• Bottom drawer holds three 1/3 or six 1/6 pans at the same 6 in depth.
• Each drawer carries up to 100 lb of loaded weight.
• Field retrofittable into existing Atosa sandwich prep tables and worktop or undercounter refrigerators.

Atosa MSF8312227A00 Drawer Cartridge Compatibility

This cartridge is built for the following Atosa sandwich prep tables:

• MSF8303GR
• MSF8307GR
• MGF8403GR
• MGF8410GR

Pan Capacity for the Two-Drawer Cartridge

Each drawer takes 6 in deep pans. The top drawer holds three 1/6 pans and three 1/3 pans, or nine 1/6 pans. The bottom drawer holds three 1/3 pans or six 1/6 pans.

Refrigerated Prep Table Drawer Cartridge Specifications

• Dimensions: 29-3/4 in W x 24 in D x 27-1/4 in H.
• Weight capacity: 100 lb max load per drawer.
• Pan depth: 6 in.
• Installation: field retrofittable.

Built for Atosa Sandwich Prep Tables and Worktop Refrigerators

Atosa builds these drawer cartridges to fit existing sandwich prep tables and worktop or undercounter refrigerators, giving you organized, pan-ready storage without replacing the whole unit.

Application: Replaces a door section with two drawers. Compatibility: Atosa MSF8303GR, MSF8307GR, MGF8403GR, MGF8410GR.
