Taprite Regulator Troubleshooting Guide: Common Problems, Causes & Solutions

Taprite Regulator Troubleshooting Guide

Problem:

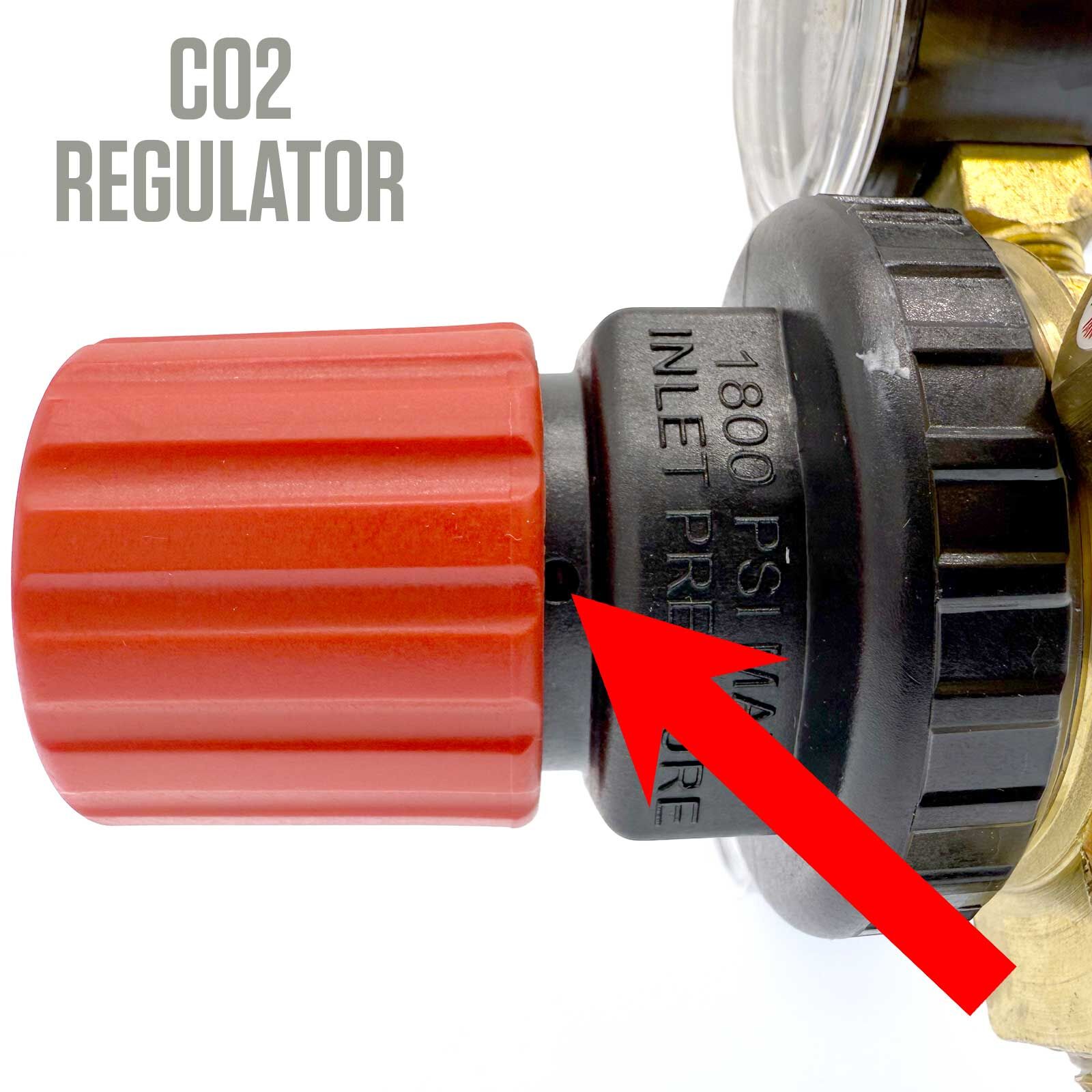

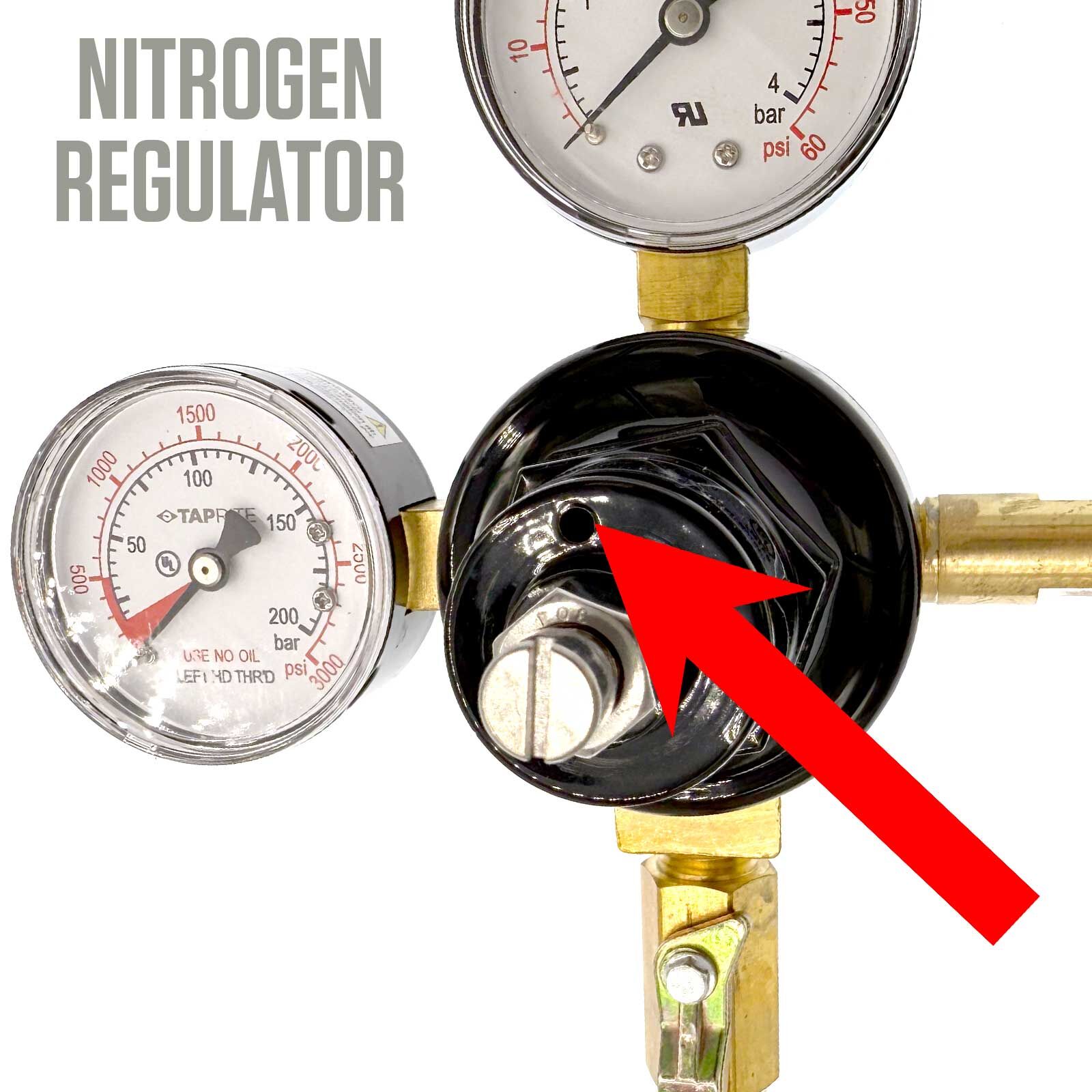

• Gas is escaping from the small hole located at the top of the regulator bonnet.

Root Causes:

• The capsule seat may be leaking, preventing a proper seal.
• The diaphragm itself may be compromised or leaking.
• The capsule and diaphragm may not be properly assembled, leaving gaps or misalignment.

Solutions:

• If the capsule seat is leaking, remove the capsule, reseat it carefully, and apply the correct torque. For self-centering models, use 60 in/lbs; for ball-and-socket models, use 40 in/lbs. If reseating does not solve the issue, replace the capsule seat altogether.
• If the diaphragm is leaking, reseat it if it’s a self-centering design, or replace it entirely if it is worn or damaged.
• For improper assembly, ensure that the capsule ball sits correctly inside the diaphragm’s hex slot, then align and tighten according to Taprite’s assembly instructions.

2. Leak at the Bonnet Thread

Problem:

• Gas is leaking around the threaded area where the bonnet attaches to the regulator body.

Root Causes:

• The bonnet may not have been seated correctly during assembly, possibly due to cross-threading.
• The bonnet could simply be loose from insufficient tightening.
• On zinc models, paint residue may be present in the threads, preventing a proper seal.

Solutions:

• Inspect for cross-threading and reseat the bonnet carefully. Once seated properly, tighten to the correct torque specification.
• If loose, retighten the bonnet. Use 190 in/lbs for zinc models and 190 in/lbs for poly models.
• If paint or debris is present in zinc-threaded models, scrap the bonnet and replace it with a new one, since contaminants in the threads cannot be effectively cleaned.


3. Leak at the Fittings

Problem:

• Gas leaks are present at one or more regulator fittings.

Root Causes:

• The fitting may not be tightened enough, allowing gas to escape.
• Threads could be crossed, which prevents proper sealing and may damage the fitting.

Solutions:

• If the fitting is simply loose, remove it, apply Teflon tape and Loctite sealant to the threads, and reinstall the fitting, tightening it until secure.
• If the threads are crossed, remove the damaged fitting completely and replace it with a new one to restore proper sealing.


Problem:

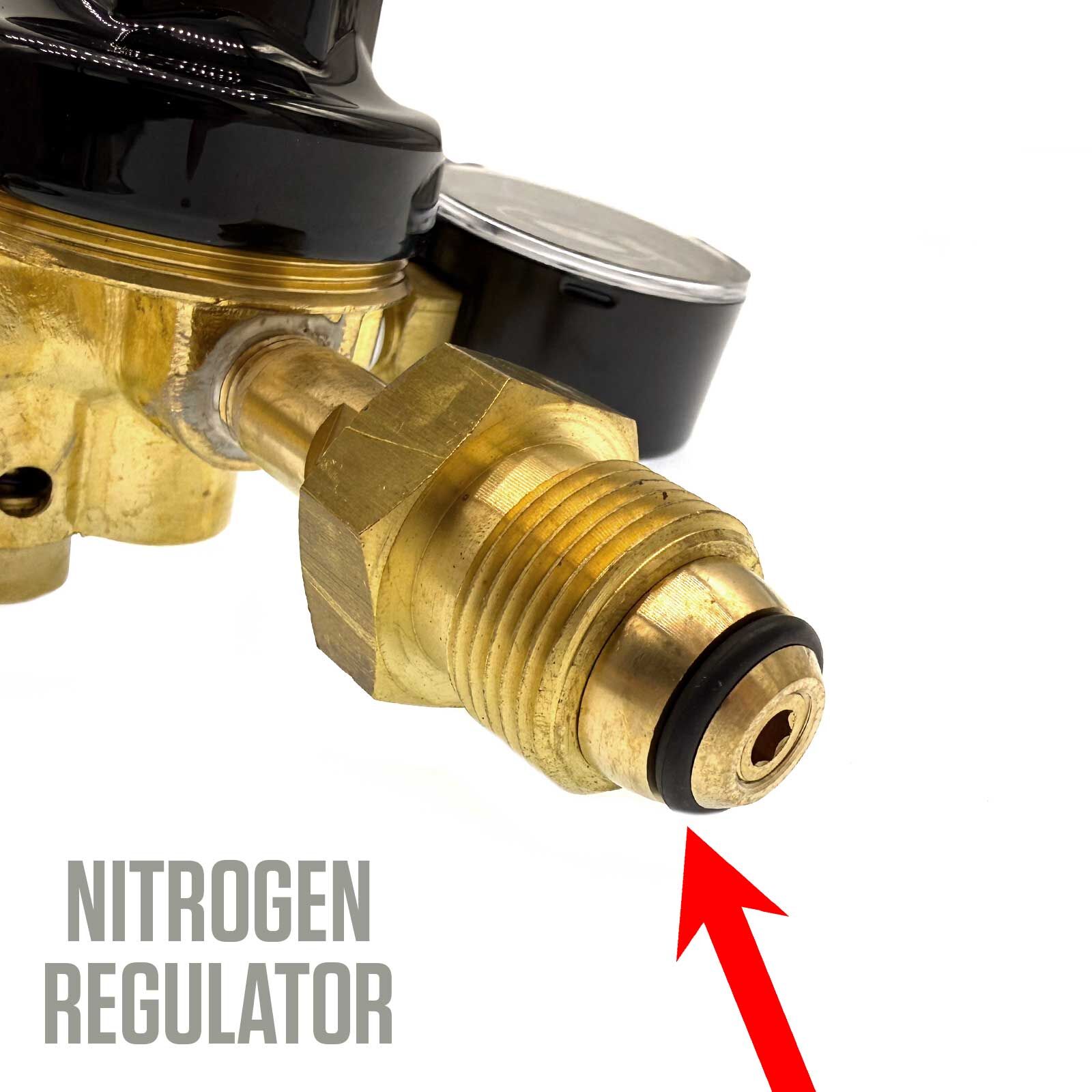

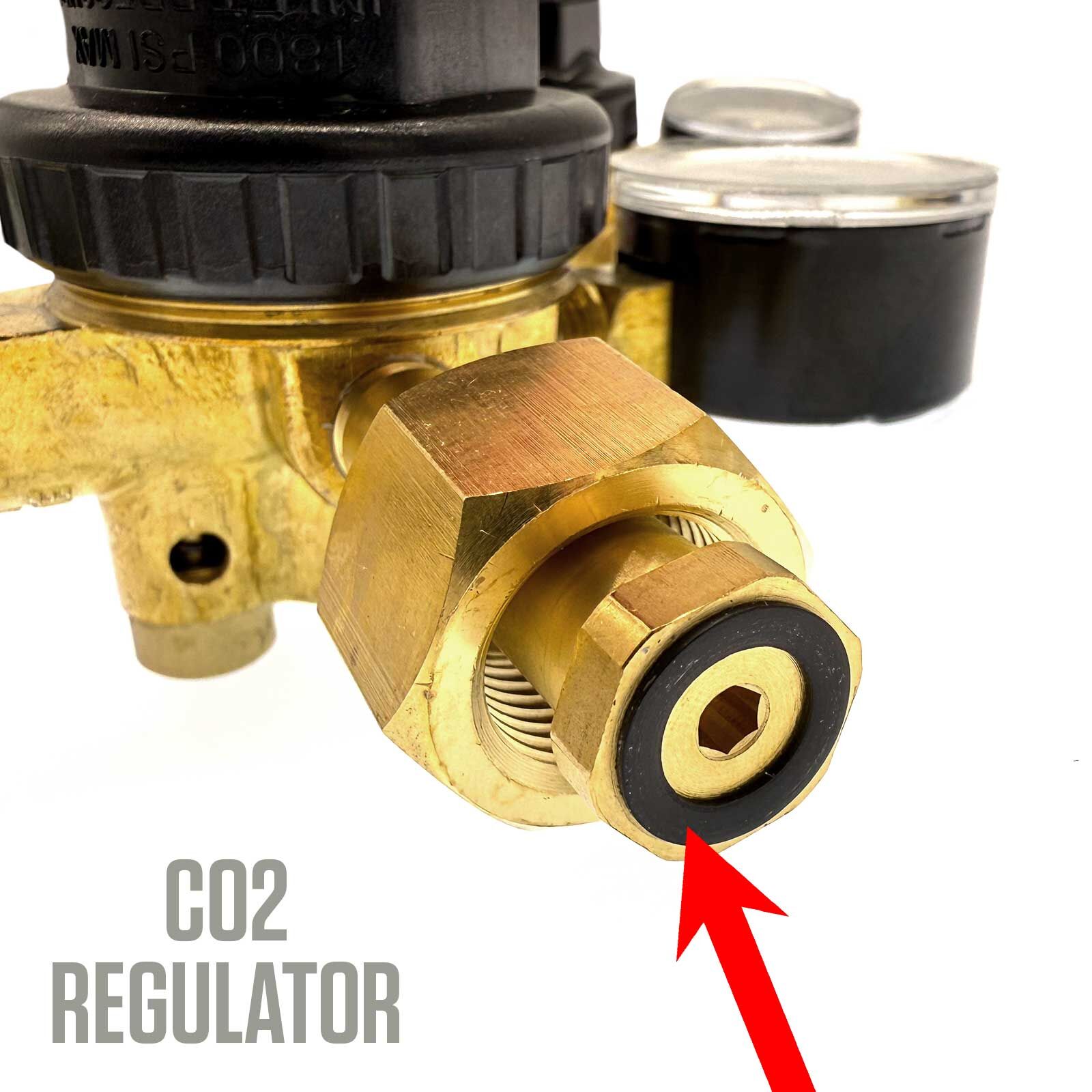

• Gas leaks around the connection between the regulator and the CO2 tank.

Root Causes:

• The regulator fitting may not be tightened properly against the tank valve.
• The seal (such as an O-ring or washer) may be damaged, worn, or missing.
• The nut or the tank fitting itself could be damaged, preventing a tight seal.

Solutions:

• Re-tighten the regulator fitting until it is snug against the tank valve. Do not overtighten, as this may damage the fitting.
• Inspect the seal. If worn, cracked, or missing, replace it with a new O-ring or washer designed for CO2 applications.
• If the nut or tank fitting is damaged, replace the defective component to restore proper sealing.

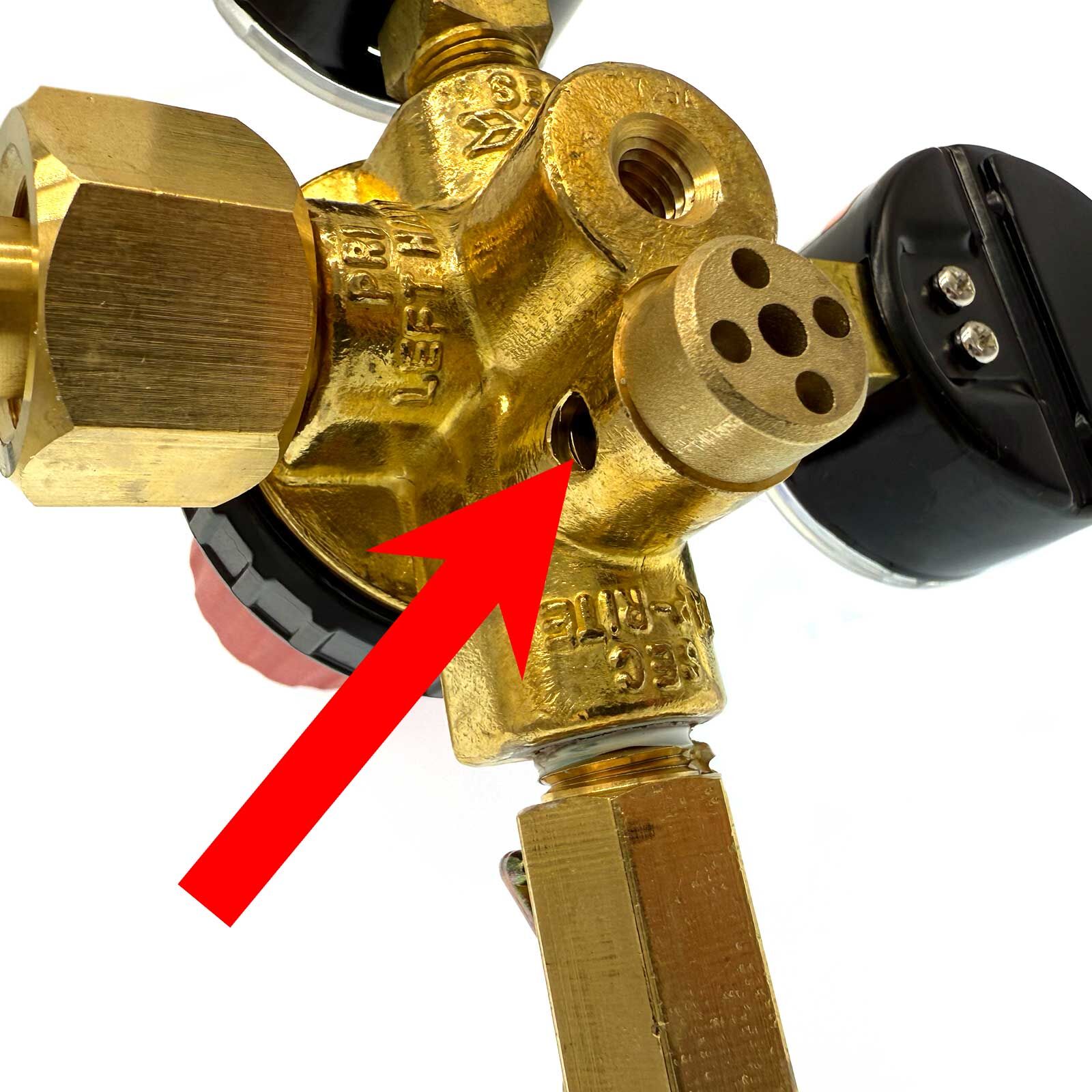

Problem:

• Gas leaks from the regulator’s built-in safety valve.

Root Cause:

• Debris or residue may be present on the sealing surface, preventing the safety valve from closing completely.

Solution:

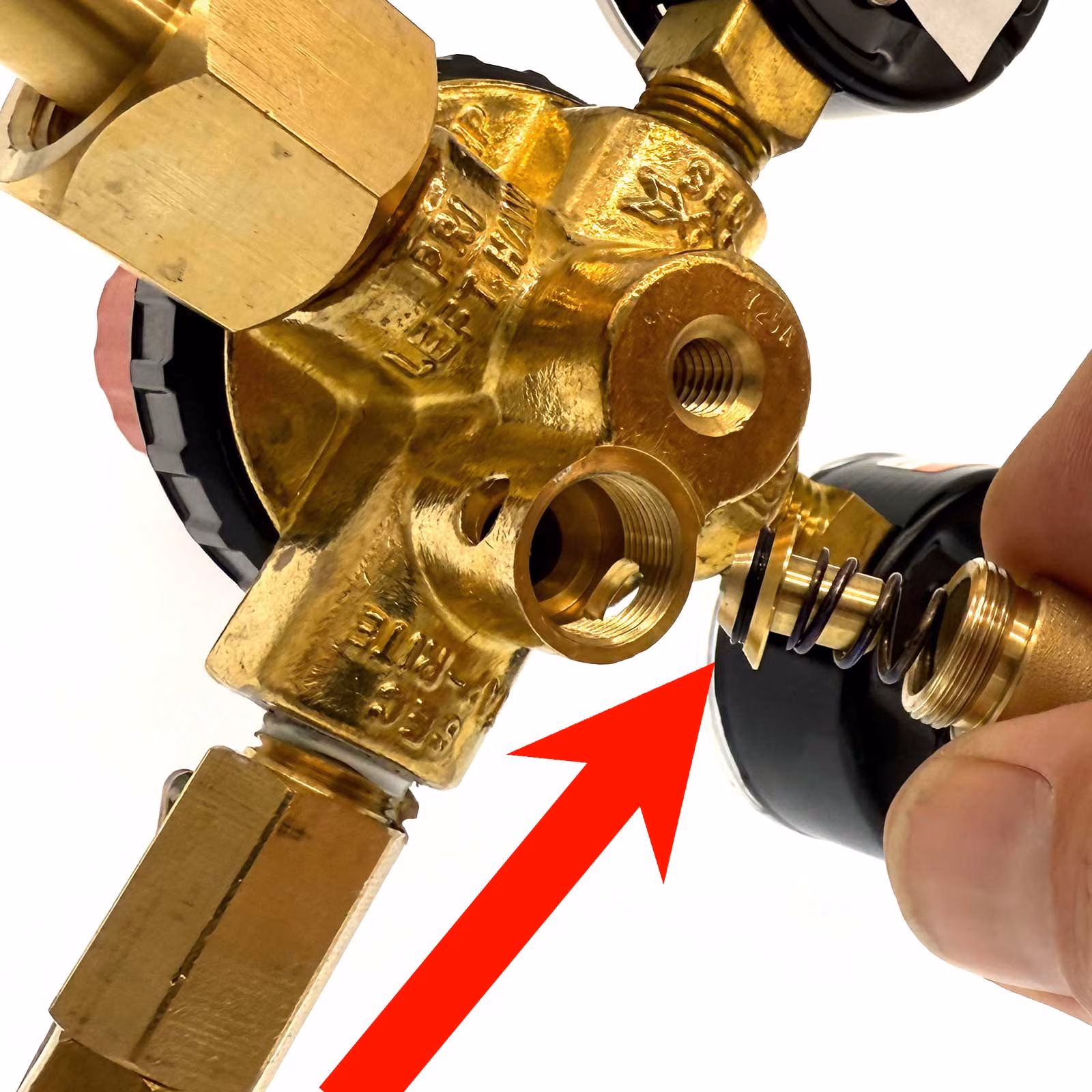

• Remove the safety valve and inspect the quad ring for debris or buildup. Clean the sealing surfaces thoroughly, and you can add keg lube to the o-ring, then reinstall the valve to restore a proper seal.


6. Unable to Turn the Bonnet Screw or Top Adjustment Cap/Knob

Problem:

• The regulator adjustment screw or knob cannot be turned to increase or decrease pressure.

Root Causes:

• The adjustment screw threads may be crossed, binding the mechanism.
• The adjustment knob may be stripped, making it impossible to engage the screw mechanism.

Solutions:

• If the adjustment screw threads are crossed, replace the zinc bonnet assembly with a new one, as the damaged threads cannot be repaired.
• If the adjustment knob is stripped, replace the poly bonnet assembly so the adjustment mechanism can function normally again.

With this expanded guide, technicians and operators can better understand not just the symptom of a regulator issue, but also why it happens and how to address it effectively.
