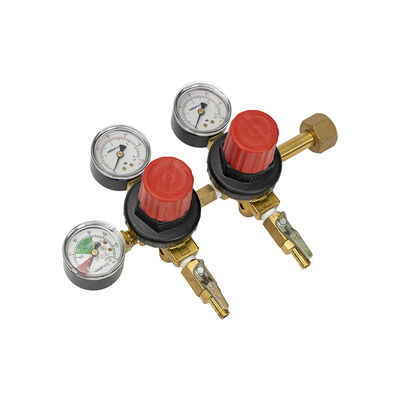

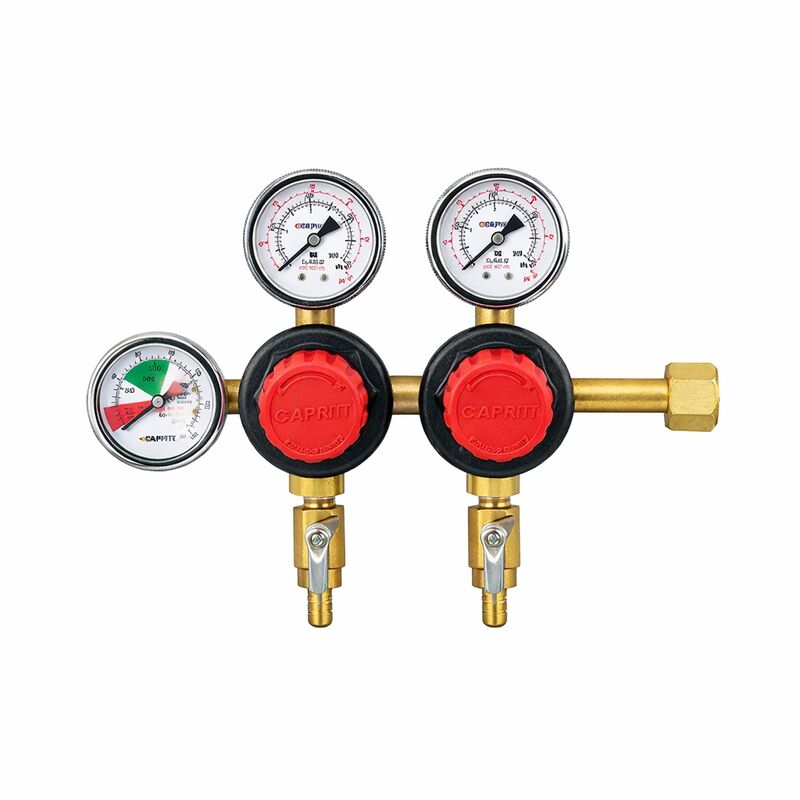

Dual Body Primary CO2 Regulator - MFL Outlets and Check Valves - Taprite 740 Series

Dual Pressure Control from a Single Tank

This dual-body regulator allows you to run two different kegs at two different pressures simultaneously from one CO2 tank. It is a Taprite 740 series, known for maintaining a constant output pressure even as your tank volume gets low. Each body features its own independent adjustment knob and 0-60 PSI gauge, making it ideal for systems where you need to pour a stout at low pressure and a carbonated water or cider at higher pressure at the same time.

The regulator comes with 1/4" MFL threaded outlets. These allow for easy connection to your gas lines using swivel nuts, so you can swap lines or disconnects without having to cut zip ties or clamps. Each outlet includes a built-in check valve to prevent beer or moisture from backing up into the regulator bodies, which protects the internal diaphragms from damage.

Product Specifications

• Body Material: Heavy-duty brass with polycarbonate gauge lenses.
• Inlet Connection: Standard CGA-320 for US CO2 tanks.
• Outlet Connection: 1/4" MFL with shut-off and check valves.
• Gauges: (2) 0-60 PSI output gauges and (1) 0-2000 PSI tank pressure gauge.
• Adjustment: Tool-free pressure adjustment knobs.

Highlights

• Sets and maintains two separate output pressures from a single CO2 tank.
• Integrated check valves prevent liquid backflow into the regulator bodies.
• 1/4" MFL threaded outlets allow for fast gas line changes and cleaning.
• High CO2 flow capacity stays consistent even as the tank pressure drops.

Part number: t752hp-02
Regulator inlet type: cga320
Working pressure range: 0-50psi
Pressures and products: 2p2p
Regulator gas type: co2
Regulator outlet type: 1/4" flare shutoff w/check
Regulator type: beer, co2, primary, tank mount, low pressure, high flow, series 740
