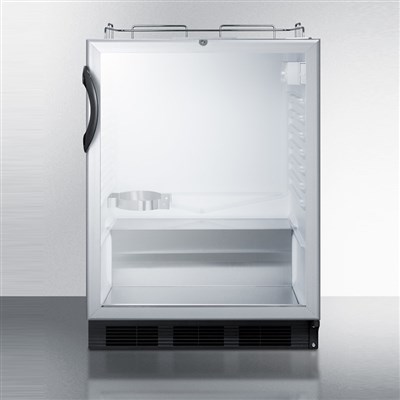

Summit ADA Compliant Undercounter Kegerator w/ Glass Door (24" Wide)

Summit ADA Compliant Undercounter Kegerator w/ Glass Door (24" Wide)
Brand: Summit Appliance
Part Number: SBC56GBINKADA
Price: $1,899.00 to $2,079.00 List Price: $2,000.00

This product qualifies for Free Ground Shipping*
Qty
Product Downloads & Documents

Summit Commercial ADA Compliant Kegerator

At 32 inches high, the ADA complient SBC56GBINKADA kegerator is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features a reversible double pane tempered glass door for a full display of the interior. A factory-installed lock is conveniently located towards the top of the door for added security. We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. The SBC56GBINKADA does not include any tapping equipment, allowing "do-it-yourselfers" to customize their draft system.

Inside, the SBC56GBINKADA kegerator is designed to hold up two 1/6 (sixtel) kegs. Automatic defrost ensures easy user maintenance and the seamless interior makes for easier cleaning. The stainless steel floor offers added durability when loading and unloading kegs and tanks. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2/nitrogen tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth.

Important to commercial locations, the SBC56GBINKADA kegerator is ETL-S listed to NSF-7 commercial standards.


Summit SBC56GBINKADA Features

ADA compliant height

Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

Built-in capable

Front-breathing design allows fully recessed installation under counters

Tap kit not included

Install your own tapping equipment to create a customized beer cooler

Designed for 1/6 kegs

Interior can store up to two sixtel kegs

Double pane tempered glass door

Heat resistant design provides clear view to promote impulse buys

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Adjustable thermostat

Interior dial thermostat ensures easy temperature management

Automatic defrost

No-frost operation for minimum user maintenance

Reversible door

User-reversible door swing allows you to easily adjust to better accommodate your setting

Stainless steel drip tray

Removable two-piece drip tray included for added convenience

Stainless steel guard rail

Durable railing makes it easier to neaten service

Interior light

Turn the light on when you need it and off when you're done with a convenient rocker switch

Interior CO2 holder

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.38" (59 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.88" (63 cm)
Depth with door at 90° 44.5" (113 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.8
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101062853
Kegerator
Door Swing RHD
Reversible Yes
Thermostat Type Dial
Interior Light Yes
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 0.67 oz.
High Side PSI 124.0
Low Side PSI 30.0
Inter Height 26.0" (66 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range 34º to 43ºF

AVAILABLE UPGRADES

Door Upgrades
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
Exterior Upgrades
LHD - Left hand door swing
Door reversal to left hand swing
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
SSK
Stainless steel kickplate factory installed

Available Door Tint Upgrades

T1 Door Tint

T1S Door Tint

T2 Door Tint

T3 Door Tint

T4 Door Tint

Scroll to view product options.

Part # Item Door Tint Price
SBC56GBINKADA Summit ADA Compliant Undercounter Kegerator w/ Glass Door (24" Wide) None $1,899.00 Add to Cart
SBC56GBINKADA-T1 Summit ADA Compliant Undercounter Kegerator w/ Glass Door (24" Wide) - T1 Door Tint T1 Door Tint $2,079.00 Add to Cart
SBC56GBINKADA-T1S Summit ADA Compliant Undercounter Kegerator w/ Glass Door (24" Wide) - T1S Door Tint T1S Door Tint $2,079.00 Add to Cart
SBC56GBINKADA-T2 Summit ADA Compliant Undercounter Kegerator w/ Glass Door (24" Wide) - T2 Door Tint T2 Door Tint $2,079.00 Add to Cart
SBC56GBINKADA-T4 Summit ADA Compliant Undercounter Kegerator w/ Glass Door (24" Wide) - T4 Door Tint T4 Door Tint $2,079.00 Add to Cart

Scroll to view product options.
