Summit Commercial brings unique appliance choices to outdoor ADA compliant settings with a new line of commercial kegerators made in Europe.

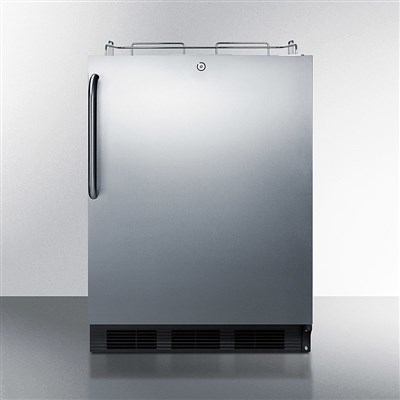

Sized at 32 inches high, the Summit SBC54OSBIADANK is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. This unit comes with a weatherproof 304 grade stainless steel wrapped cabinet and door, complete with a pro style towel bar handle and front-mounted lock. A guard rail is included (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. This unit does not include any tapping equipment, allowing "do-it-yourselfers" to customize their draft system.
Inside, the Summit SBC54OSBIADANK kegerator is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank in the cabinet and save on exterior depth.
The SBC54OSBIADANK is ETL-S listed to NSF-7 commercial standards and uses environmentally friendly hydrocarbon based refrigerant (R600a) to comply with certain state's guidelines. This unit can also be ordered with tap equipment for beer, coffee, wine, or kombucha.
Features
ADA compliant height
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
Commercially approved
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Built-in capable
Front-breathing design allows fully recessed installation under counters
Tap kit not included
Install your own tapping equipment to create a customized beer cooler
Designed for 1/6 kegs
Interior can store up to two sixtel kegs
304 grade stainless steel exterior
Complete stainless steel construction for easy durability in the outdoors
Factory installed lock
Front lock located towards the top of the door for convenient access, with 2 keys included
Professional handle
Curved towel bar style handle in brushed stainless steel
Adjustable thermostat
Interior dial thermostat ensures easy temperature management
Automatic defrost
No-frost operation for minimum user maintenance
Stainless steel drip tray
Removable two-piece drip tray included for added convenience
Stainless steel guard rail
Durable railing makes it easier to neaten service
Interior light
Turn the light on when you need it and off when you're done with a convenient rocker switch
Interior CO2 holder
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Fully finished cabinet
Allows the unit to be used freestanding
Ground Fault Circuit Interrupter
Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Specifications
|
Overview
|
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.25" (82 cm) |
| Width |
23.75" (60 cm) |
| Depth |
24.75" (63 cm) |
| Depth with Handle |
27.25" (69 cm) |
| Depth with door at 90° |
47.0" (119 cm) |
| Capacity |
5.5 cu.ft. (156 L) |
| Defrost Type |
Automatic |
| Door |
Stainless Steel |
| Cabinet |
Stainless Steel |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.2 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
110.0 lbs. (50 kg) |
| Shipping Weight |
120.0 lbs. (54 kg) |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| UPC |
761101069593 |
|
Kegerator
|
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Thermostat Type |
Dial |
| Interior Light |
Yes |
| Fan Type |
Exterior |
| Refrigerant |
R600a |
| Refrigerant Amount |
0.64 oz. |
| High Side PSI |
180.0 |
| Low Side PSI |
80.0 |
| Inter Height |
26.25" (67 cm) |
| Interior Width |
21.0" (53 cm) |
| Interior Depth |
17.75" (45 cm) |
| Compressor Step Height |
5.5" (14 cm) |
| Compressor Step Width |
21.0" (53 cm) |
| Compressor Step Depth |
5.5" (14 cm) |
| Temperature Range |
34º to 43ºF |
Scroll to view product options.
| Part # |
Description |
Price |
|
|
SA-SBC54OSBIADANK
|
Summit ADA Compliant Undercounter Kegerator (Outdoor Use / 24" Wide) |
$2,331.00 |
Add to Cart |
Scroll to view product options.
