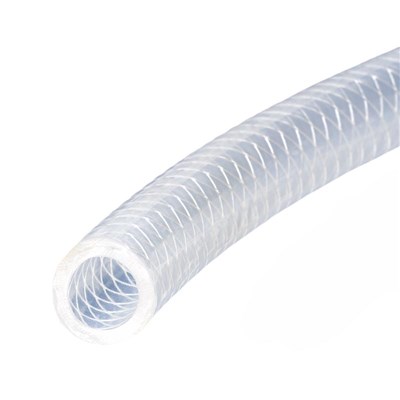

Reinforced Braided Hose (1/4" ID X 15/32 OD)

 / Alternate View  / Alternate View
Reinforced Braided Hose (1/4" ID X 15/32 OD)
Brand: Accuflex
Part Number: HO1415-170
Price: $1.09 List Price: $1.29

Qty

SOLD BY THE FOOT.

Bevlex Series 170 Reinforced Braided Tubing

Bevlex Series 170 reinforced braided hose is a great NSF-approved beverage hose made with food-grade materials and provides excellent resistance to stress cracking.

  • LLDPE Core Tube Construction - Provides excellent resistance to stress cracking.

  • Food-Grade Materials - Bevlex™ Series 170 beverage hose is NSF-51/61 certified. Polyethylene material complies with FDA Regulation 21 CFR 177.1520 (c) 3.1 b for food contact under conditions of use D through H in Table 2 of 21 CFR 176.170 (c).

  • Polyester Reinforcement - Provides pressure performance and kink resistance exceeding that of simple tubing.

  • Bonded Abrasion-Resistant Copolymer Jacket - Will not separate or ripple in tight bends or during installation in conduits.

  • Phthalate Free

Accuflex Part Number: 170-041X2-0

THIS PRODUCT IS SOLD BY THE FOOT.  SELECT QTY FOR THE LENGTH YOU NEED.

Nominal Specifications | Specifications | Note

Accuflex 170-041X2-0 Nominal Specifications

Standard Package PRODUCT SOLD BY THE FOOT.  A FULL ROLL IS 100' Payout Carton
Nominal ID 1/4 in / (0.265")
Nominal OD 15/32 in / (0.457")
Working Pressure at 70°F 300 psi
Working Pressure at 122°F 150 psi
Weight 2.8 kg 6.2 lb
Min. Bend Radius 1.10 in
Clamp Size 13.3 mm

Accuflex 170-041X2-0 Specifications

Brand Bevlex®
Type Tubing
Series 170
Material Polyethylene
Yarn Color White
Industry Standards/Certifications FDA / NSF®

Accuflex 170-041X2-0 Notes

Note Available in 500 ft. lengths

Scroll to view product options.

Part # Description Price
HO1415-170 Reinforced Braided Hose (1/4" ID X 15/32 OD) $1.09 Add to Cart

Scroll to view product options.
