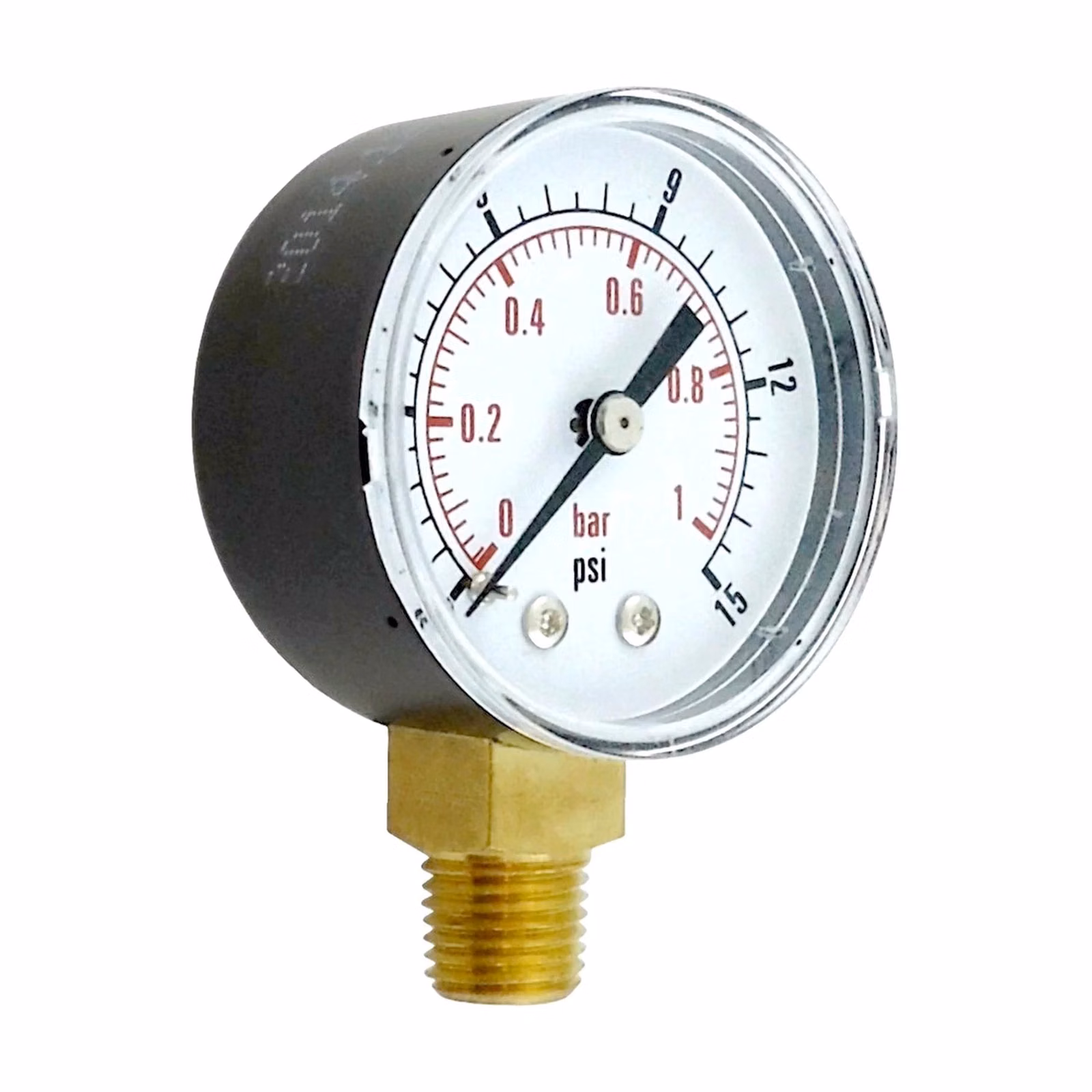

This 0–15 PSI regulator gauge lets you check the low-side pressure supplied to your keg system. Use it as a replacement for a worn or damaged gauge on a compatible CO2 regulator, including Chudnow brand regulators.
The dial has both PSI and BAR scales, so you can read pressure in either unit. Its 2-inch face is easy to check during setup and routine pressure adjustments. The gauge is a dry type and has a right-hand-threaded 1/4-inch MPT stem.
- Pressure range: 0–15 PSI
- 2-inch diameter dial
- 1/4-inch MPT stem with right-hand threads
- Dual PSI and BAR scales
- Accuracy: ±1.6%
- Phosphor bronze Bourdon tube and steel case
Check the regulator’s gauge port size and thread before ordering to confirm the stem will fit. This gauge reads regulator output pressure; it isn’t a high-pressure cylinder gauge.
Highlights
- Reads regulator output pressure from 0 to 15 PSI.
- 2-inch dial displays pressure in both PSI and BAR.
- Connects through a right-hand-threaded 1/4-inch MPT stem.
- Rated for ±1.6% accuracy.
- Uses a phosphor bronze Bourdon tube in a steel case.
Specifications
| Pressure Range | 0–15 PSI |
|---|
| Dimensions | 2-inch diameter |
|---|
| Thread Size | 1/4-inch MPT, right-hand thread |
|---|
| Connection Type | Male pipe thread stem |
|---|
| Gauge Type | Low-pressure dry gauge |
|---|
| Scale | PSI and BAR |
|---|
| Accuracy | ±1.6% |
|---|
| Material | Steel case; phosphor bronze Bourdon tube |
|---|
Scroll to view product options.
| Item / Part # |
Price |
|
Regulator Gauge - 0-15 PSI
RG15
|
$7.95 |
Add to Cart |
