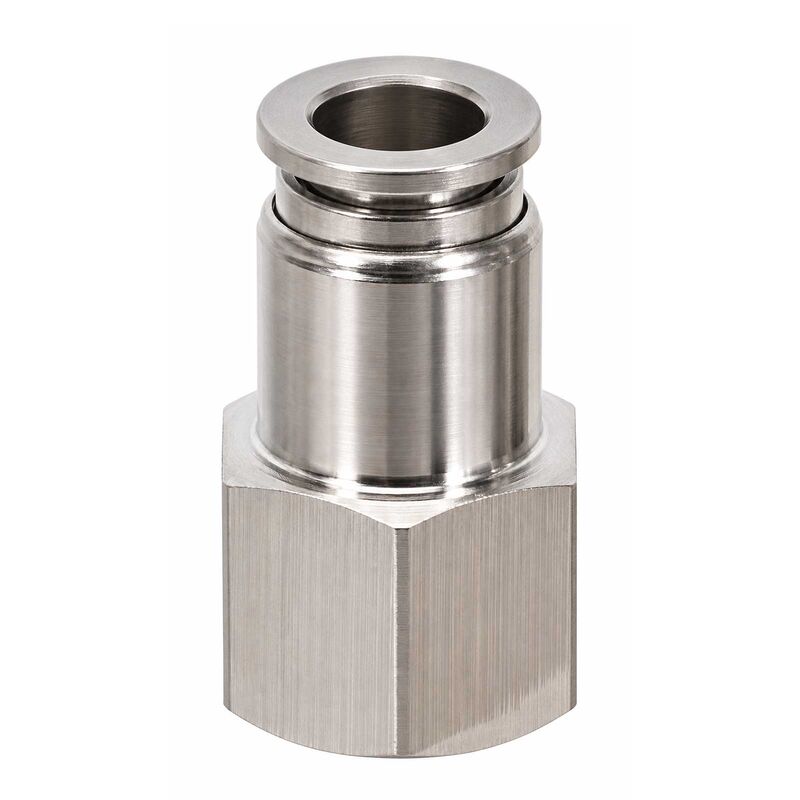

Stainless Steel Push-In Fitting - 8 mm (5/16 in.) x 1/4 in. Flare

Stainless Steel Push-In Fitting - 8 mm (5/16 in.) x 1/4 in. Flare

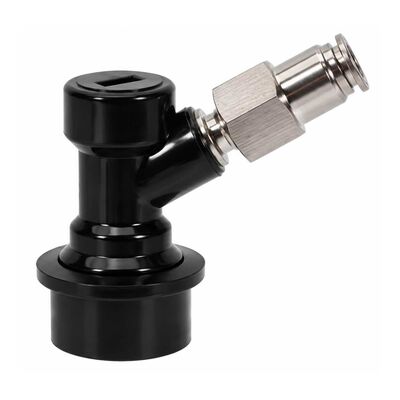

This fitting connects 8 mm (5/16 in.) tubing to a 1/4 in. flare connection. The push-in side grabs your 8 mm line, and the female flare threads onto any 1/4 in. male flare (MFL) fitting. That makes it a straightforward way to tie EVABarrier 4 mm x 8 mm tubing into CMBecker disconnects, regulators, and other gear that uses a 1/4 in. male flare.

It's built from stainless steel and uses a dual seal o-ring, the same approach you'll find on Duotight-style push fittings. Two o-rings mean a more reliable seal and less chance of a slow leak on your gas or liquid line. And because it's stainless, it holds up better than plastic in high-use setups.

How to Use It

• Cut your hose straight—not at an angle—then firmly push it into the fitting until it locks in place.
• To remove the hose, push back on the collet and pull the line out.
• Works with both liquid and gas lines. The o-rings are EPDM, which is chemical resistant.
• No clamps needed. The hose is held internally by the collet and o-rings.
• Don't use chlorinated cleaning solutions or bleach with this fitting. They'll degrade the seals.

Specs

Push-In Size: 8 mm (5/16 in.) tubing

Flare Connection: 1/4 in. female flare (fits 1/4 in. MFL)

Material: Stainless steel

O-Ring Material: EPDM (dual seal)

Compatible Tubing: EVABarrier 4 mm x 8 mm OD

Highlights

• Connects 8 mm (5/16 in.) tubing to a 1/4 in. flare connection.
• Female flare threads onto any 1/4 in. male flare (MFL) fitting.
• Dual EPDM o-ring seal for a more reliable, leak-free connection.
• Works with both gas and liquid lines.
• Fits EVABarrier 4 mm x 8 mm tubing—no clamps required.

Stainless Steel Push-In Fitting - 8 mm (5/16 in.) x 1/4 in. Flare

(Same part as Duotight Part # DUO106)
