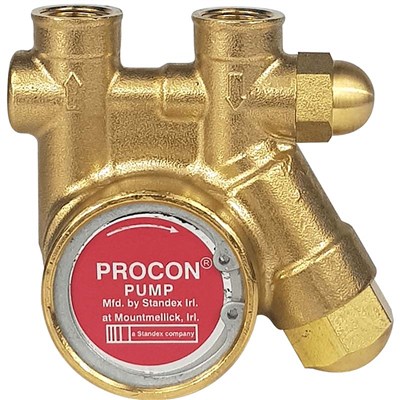

Procon Pump with Strainer - Series 1 (101A050F11AA170)

Procon Pump with Strainer - Series 1

These Procon® Rotary Vane Fluid pumps are readily used in many of our draft line cleaning pumps.

All pumps have a nominal speed of 1,725 RPMs, a maximum discharge pressure of 250 PSI, and clockwise rotation. Series 1 Pumps feature a brass body and are designed for operating flow rates of 15 GPH to 140 GPH.  The pumps have the protection of a 100-mesh wire screen strainer on the inlet with a removable cap, which allows you easily open and clean periodically to make sure your pump always runs smoothly.

Procon Pump Model # 101A050F11AA170

Details:

• Consistent flow rate across variable pressures
• Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
• Internal Relief Valve Standard-Non External adjust the configuration
• Integral Strainer for debris removal from pumping fluid
• Brass Housing Material
• NPT 3/8" Inlet and Outlet Connections
• Constructed with EPDM/Nitrile Elastomers
• Flowrate of 50GPH (150LPH)*
• Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
• Maximum Mechanical Horsepower required 0.33hp (246W)¹

* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi (17.5BAR)
