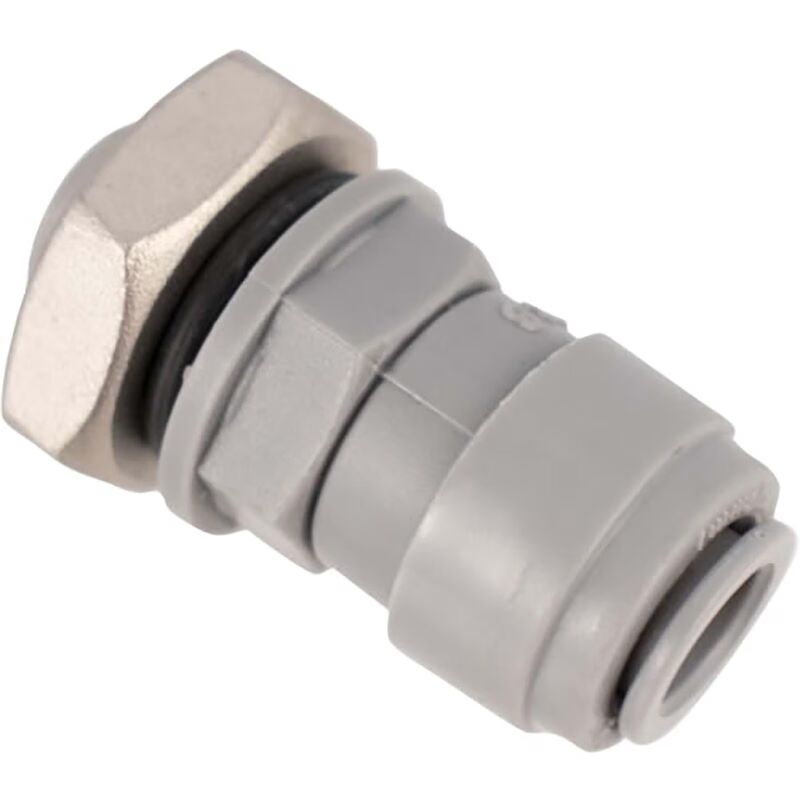

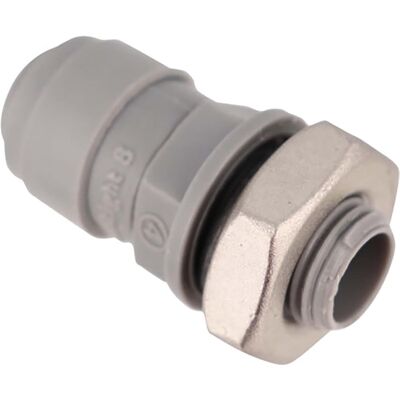

Duotight Push-In Bulkhead Fitting - 8mm (5/16") x 1/4" BSP

Duotight Push-In Bulkhead Fitting for Wall and Panel Connections

This bulkhead fitting gives you a clean, leak-free pass-through for 8mm (5/16") EVABarrier hose. Run gas or liquid lines through the wall of a keezer, kegerator, kettle, or control panel and connect them on both sides without cutting into your tubing setup. One side takes an 8mm push-in connection; the other threads with a 1/4" BSP fitting.

Dual O-Ring Seal

The Duotight system uses two O-rings instead of one, which holds a tighter seal and cuts down on the leaks you'll sometimes see with single O-ring push-fit connectors. The body is acetal plastic and the O-rings are EPDM, so it handles both gas and liquid without breaking down. And you don't need clamps. The internal collet and O-rings grip the hose on their own.

How to Use It

• Cut your hose straight and push it firmly into the fitting until it seats and locks.
• To disconnect, push back on the collet and pull the hose free.
• Skip chlorinated cleaners like bleach—they degrade the plastic over time.

It's a straightforward part for anyone building out a draft system who needs to route lines through a barrier and wants a solid, reusable connection on both sides.

Highlights

• Passes 8mm EVABarrier hose through walls, keezers, and kegerator panels.
• Dual O-ring seal holds tighter than single O-ring push-fit connectors.
• 1/4" BSP threaded side for connecting to compatible fittings.
• No clamps needed—internal collet and O-rings grip the hose.
• Rated to 150 PSI and 212°F for gas and liquid lines.

Specs

Hose Size

8mm (5/16")

Thread

1/4" BSP

Body Material

Acetal plastic

O-Ring Material

EPDM

Temperature Rating

Up to 212°F

Pressure Rating

150 PSI
