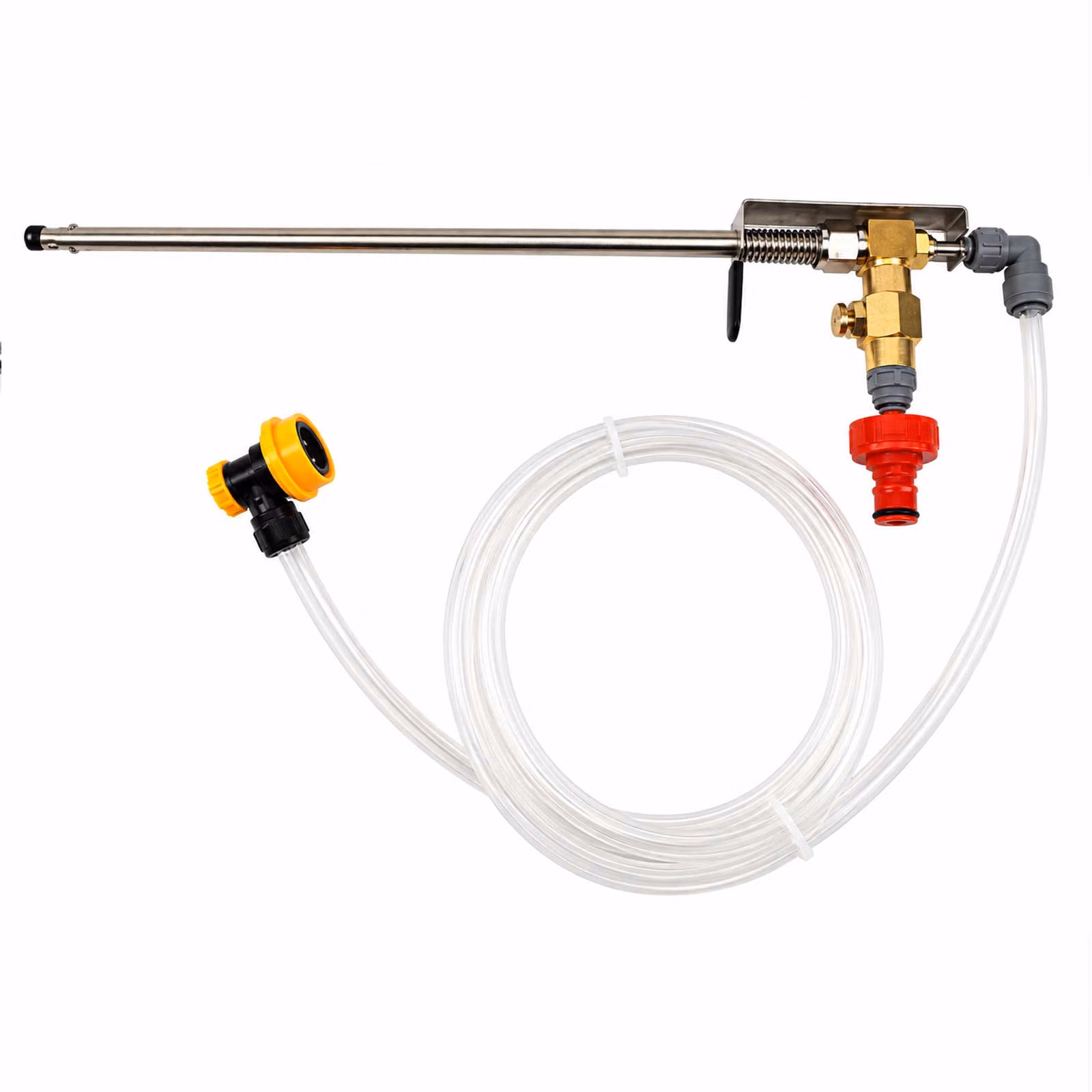

Handheld Bottle Filler With Duotight Push Fittings

Handheld Bottle Filler With Duotight Push Fittings

Transfer beer from a keg into bottles or growlers with this handheld filler. Its gas and liquid triggers let you control the bottle purge and beer flow, while the CO2 purge helps clear oxygen from the bottle before filling. Reducing oxygen exposure can help preserve the beer’s flavor and freshness after packaging.

The filler’s stainless steel beer-contact path helps keep the beer’s flavor clean and is straightforward to rinse after use. Its handheld format works with bottles of different shapes and depths, without requiring a stopper or an extra-long filling stem. Duotight push fittings connect the included tubing and fittings without hose clamps, making setup and disassembly quicker.=

Connect the liquid side to your keg and the gas side to a CO2 supply, then use the triggers to purge and fill. The included fittings and tubing provide the components for assembly; check that your keg disconnects and gas setup match the listed connections before installation.

Highlights

• Gas trigger lets you purge a bottle with CO2 before filling.
• Handheld filler works with bottles of different shapes and depths without a stopper.
• Stainless steel beer-contact path helps avoid unwanted flavor transfer.
• Duotight push fittings connect the included tubing without hose clamps.
• Includes 5 ft of EVABarrier tubing, 4 mm ID x 8 mm OD.

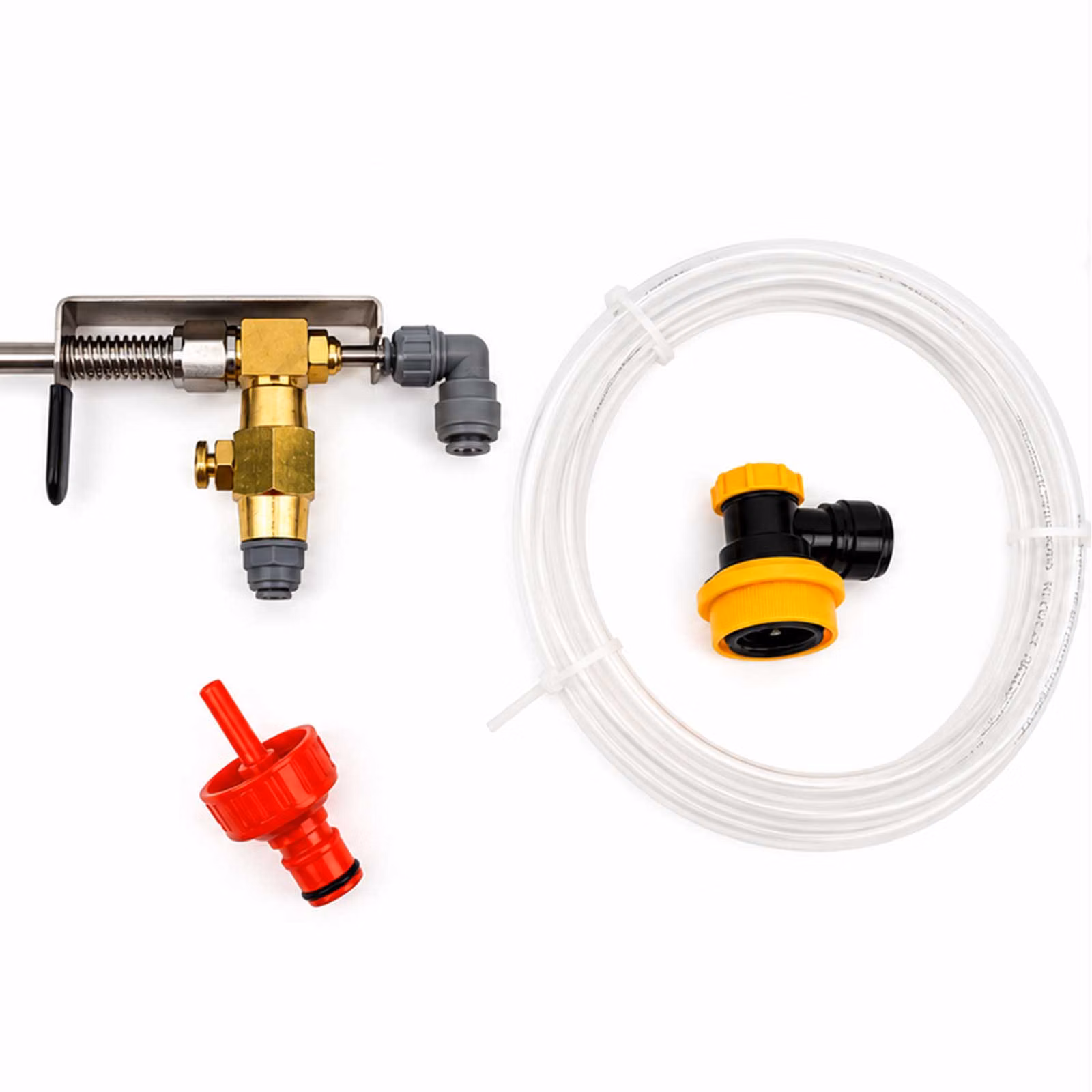

Included Components

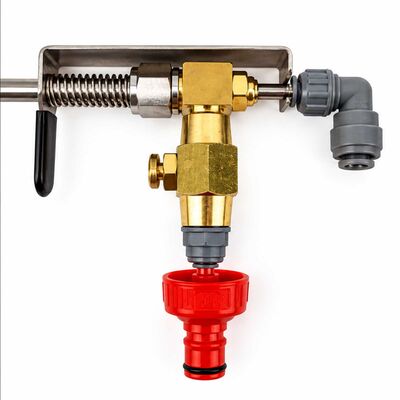

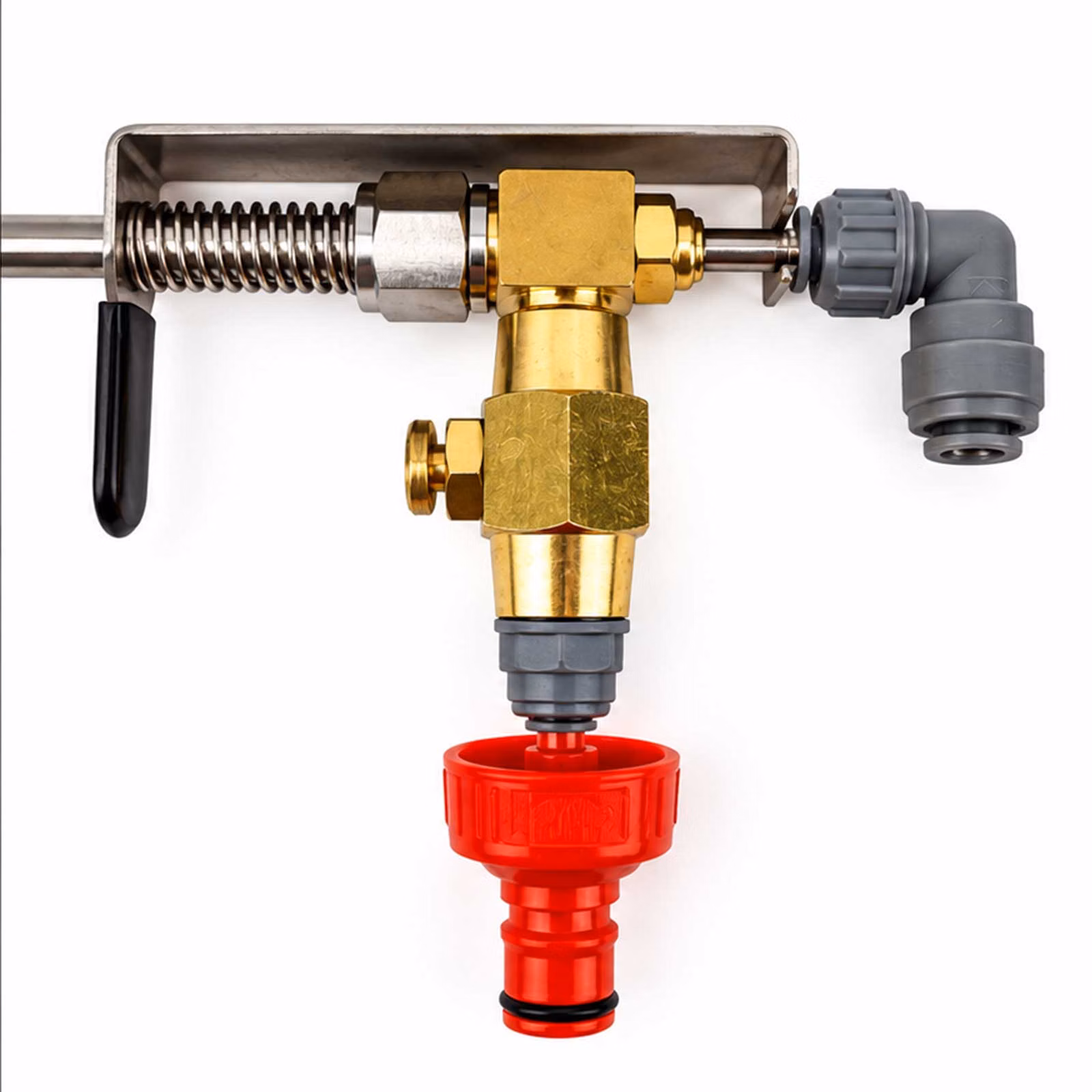

• Handheld bottle filler with gas and liquid triggers and a protective silicone tip.
• Red gas carbonation cap with a 6.35 mm male Duotight stem for connecting a gas line.
• Duotight fitting: 1/4-inch male thread x 6.35 mm.
• Duotight elbow: 6.35 mm compression x 8 mm female.
• Duotight ball-lock disconnect: 8 mm Duotight x yellow/black liquid QD.
• 5 ft of EVABarrier tubing, 4 mm ID x 8 mm OD, for beer transfer.
