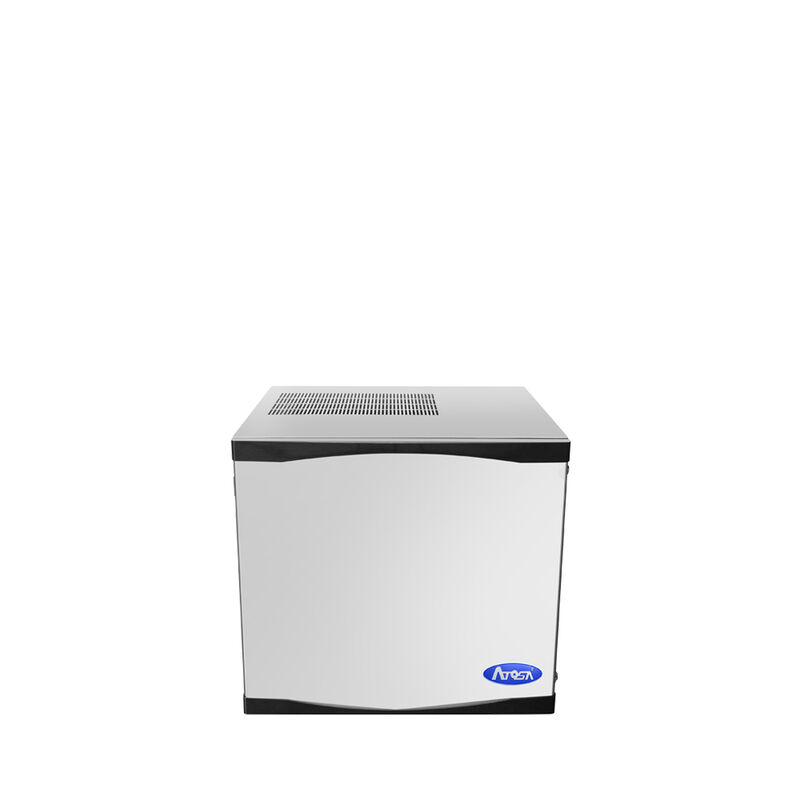

Atosa YR450S-AP-161 22-Inch Slim Modular Ice Maker - 460 lb.

The Atosa YR450S-AP-161 is a 22-inch slim modular ice maker head that turns out up to 460 lbs of half-cube ice a day without eating up the counter space a full-size unit needs. It's a head unit only - you'll pair it with the Atosa CYR400P ice bin or a compatible beverage dispenser to actually store or serve the ice.

Highlights

• Runs on a standard 115V outlet with a NEMA 5-15P plug, so it doesn't need a dedicated circuit.
• Uses R290 refrigerant, a low-impact option that's becoming standard on new ice machines.
• Backed by a 2-year parts and labor warranty plus 5 years on the compressor.
• NSF and ETL listed, and the design carries ENERGY STAR certification.
• Dispenser cutout measures 20-1/2 by 9-1/2 inches if you're mounting it over a beverage dispenser instead of the bin.

460 lb. Ice Machine Built for Tight Kitchens

• Slim 22-inch footprint: At 22 in W x 23.5 in D x 22 in H, it fits where a standard-width ice maker won't.
• Half-diced cube ice: Produces dense 3/8 in x 7/8 in x 7/8 in cubes suited to drink service and food prep.
• Stainless steel exterior: Holds up to daily wipe-downs and heavy use in a commercial kitchen.
• Air-cooled, self-contained condenser: No remote condensing unit to plumb in - just power, a water line, and a drain.
• R290 refrigerant: A lower-impact refrigerant that's becoming the standard across new commercial ice equipment.

Runs on Standard 115V Power

The YR450S-AP-161 plugs into a standard 115V/60Hz/1Ph outlet with a NEMA 5-15P plug and draws 9.6 amps at 965 watts, so most kitchens won't need special electrical work to add one. It's rated at 5.04 kWh per 100 lbs of ice produced.

Water connects through a 3/8 in slip-style fitting, and both the water outlet and bin drain use a 3/4 in hose barb. The unit comes standard with a 3M ICE120-S water filter system to cut down on scale and improve ice quality - Atosa recommends swapping the cartridge about every 6 months, sooner if your water is harder than average.

Specifications

• Ice Production: Up to 460 lbs per 24 hours
• Ice Type: Half cube, 3/8 in x 7/8 in x 7/8 in
• Exterior Dimensions: 22 in W x 23.5 in D x 22 in H
• Gross Weight: 158 lbs
• Voltage: 115V/60Hz/1Ph, 9.6A, 965W
• Refrigerant: R290
• Dispenser Cutout: 20.5 in x 9.5 in
• Certifications: NSF, ETL, ENERGY STAR
• Warranty: 2-year parts and labor, 5-year compressor part

Note: This is a modular ice maker head only. An ice storage bin, such as the Atosa CYR400P, is required and sold separately.

Production: 460 lbs/24hr. Ice Type: Half Cube. Width: 22 inches (Slim). Condenser: Air-Cooled. Bin: Sold Separately.
