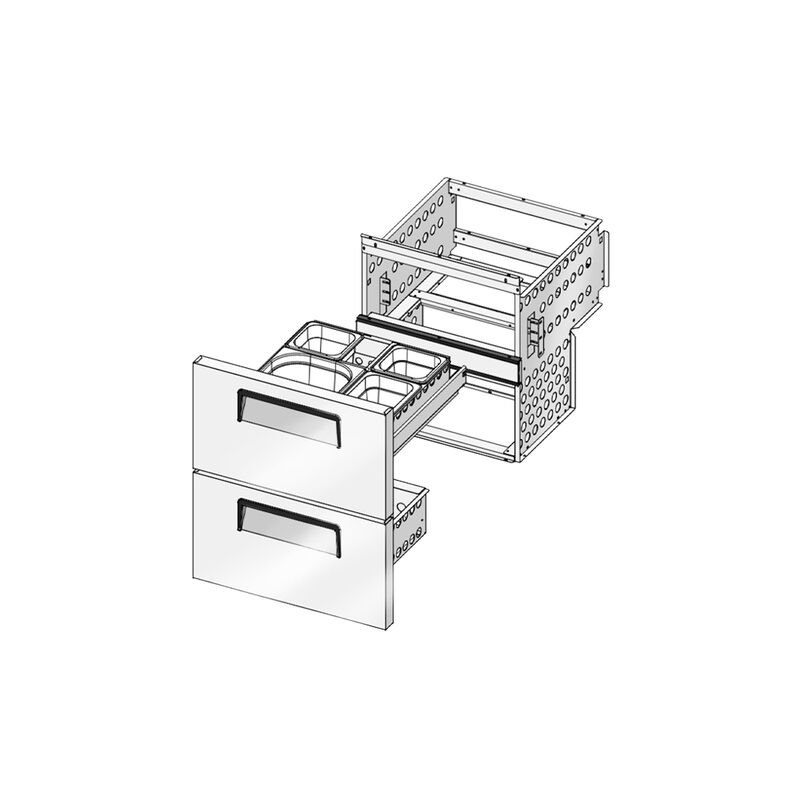

Atosa MSF8310227A20 Drawer Cartridge for MSF8300 Series Prep Tables (Left & Right Doors)

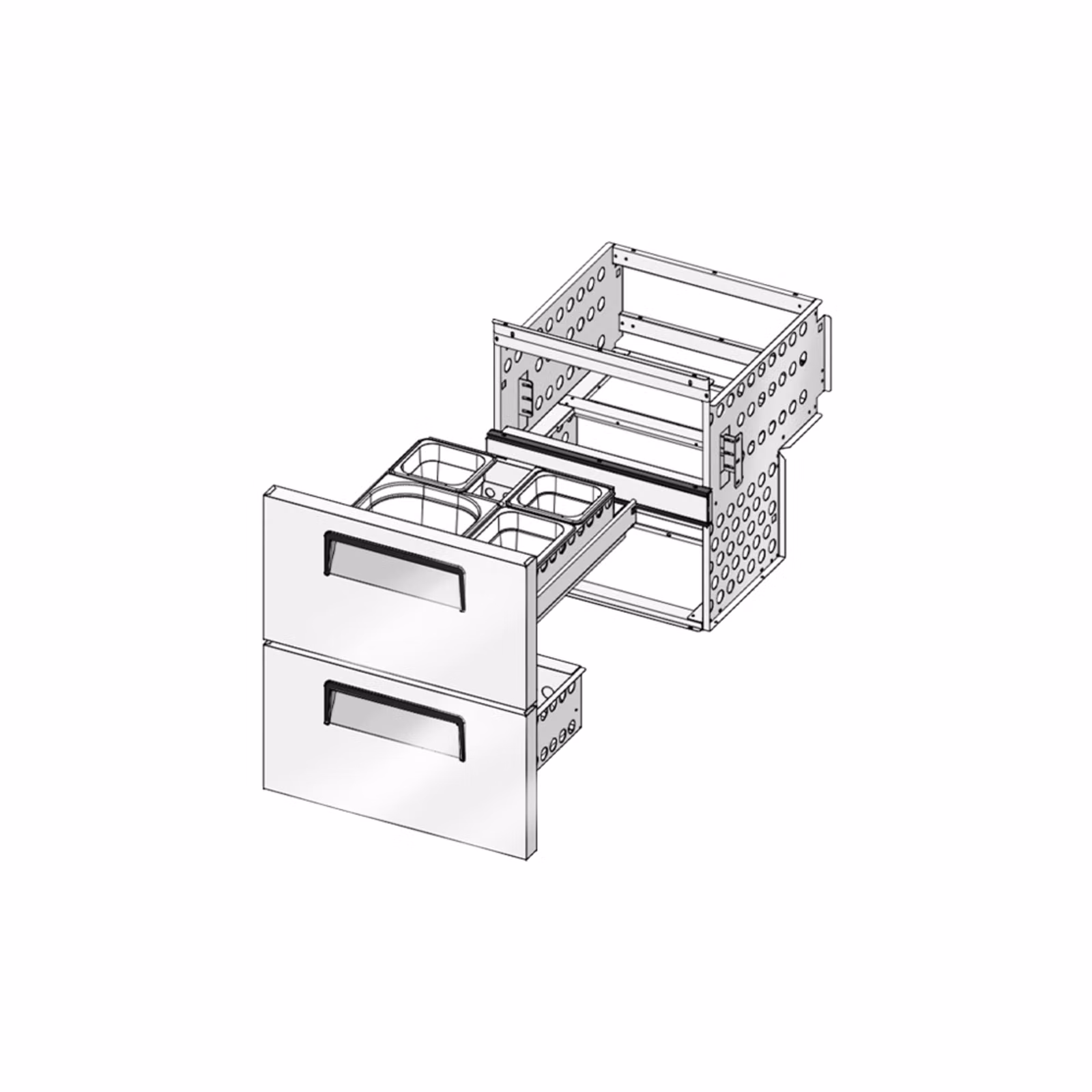

The Atosa MSF8310227A20 is a field-retrofittable drawer cartridge that converts the left or right door section of a compatible Atosa prep table into two refrigerated drawers. It installs into existing Atosa sandwich prep tables and worktop/undercounter refrigerators without swapping the whole unit.

Highlights

• Rated for 100 lb per drawer using 6 in deep hotel pans.
• Top drawer holds up to six 1/6 pans or a mix of 1/6, 1/3, and 1/2 pans.
• Bottom drawer holds up to four 1/6 pans or a mix of 1/3 and 1/2 pans.
• Also fits Atosa worktop and undercounter refrigerators, not just prep tables.
• Covers seven Atosa MSF8300 and MGF8400 series models in one cartridge.

MSF8310227A20 Drawer Cartridge Compatibility

This cartridge fits the left and right door positions on the following Atosa models:

• MSF8302GR
• MSF8304GR
• MSF8306GR
• MSF8308GR
• MGF8402GR
• MGF8404GR
• MGF8409GR

Pan Capacity and Weight Rating

Each drawer is built for 6 in deep hotel pans, with the following capacity per drawer:

• Top drawer: (2) 1/6 pan, (1) 1/3 pan, and (1) 1/2 pan, or (6) 1/6 pans.
• Bottom drawer: (1) 1/3 pan and (1) 1/2 pan, or (4) 1/6 pans.
• Weight capacity: 100 lb max loading weight per drawer.

MSF8310227A20 Drawer Cartridge Dimensions

• Width: 23-3/4 in
• Depth: 24 in
• Height: 27-1/4 in (two 13-3/8 in drawer faces)

Application: Replaces a door section with two drawers. Compatibility: Atosa MSF8302GR, MSF8304GR, MSF8306GR, MSF8308GR, MGF8402GR, MGF8404GR, MGF8409GR (Left/Right doors).
