Atosa MSF8309227A00 Drawer Cartridge for MSF8301GR, MSF8305GR, MGF8401GR, MGF8408GR

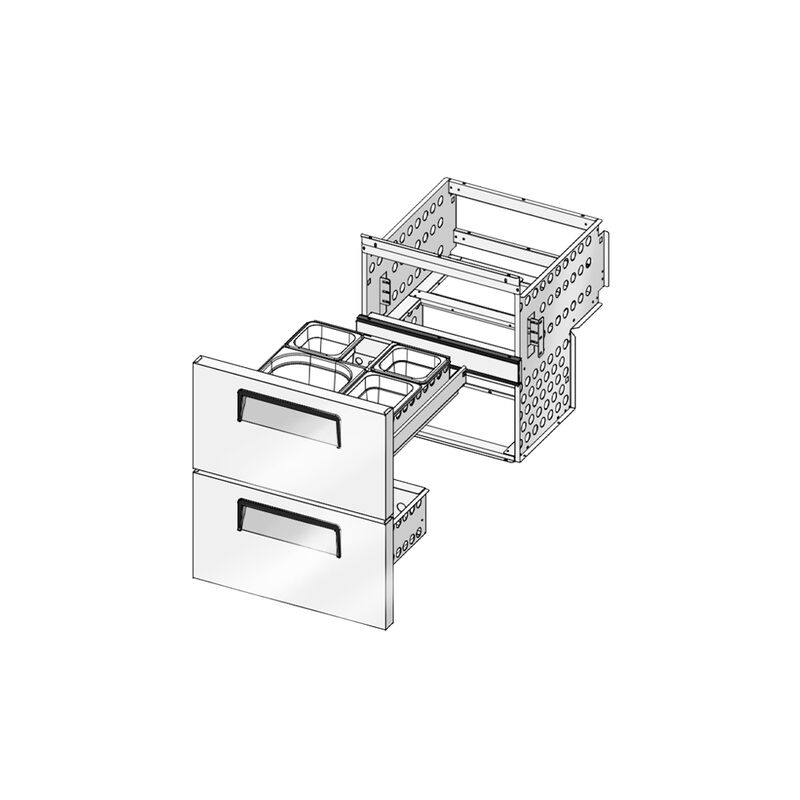

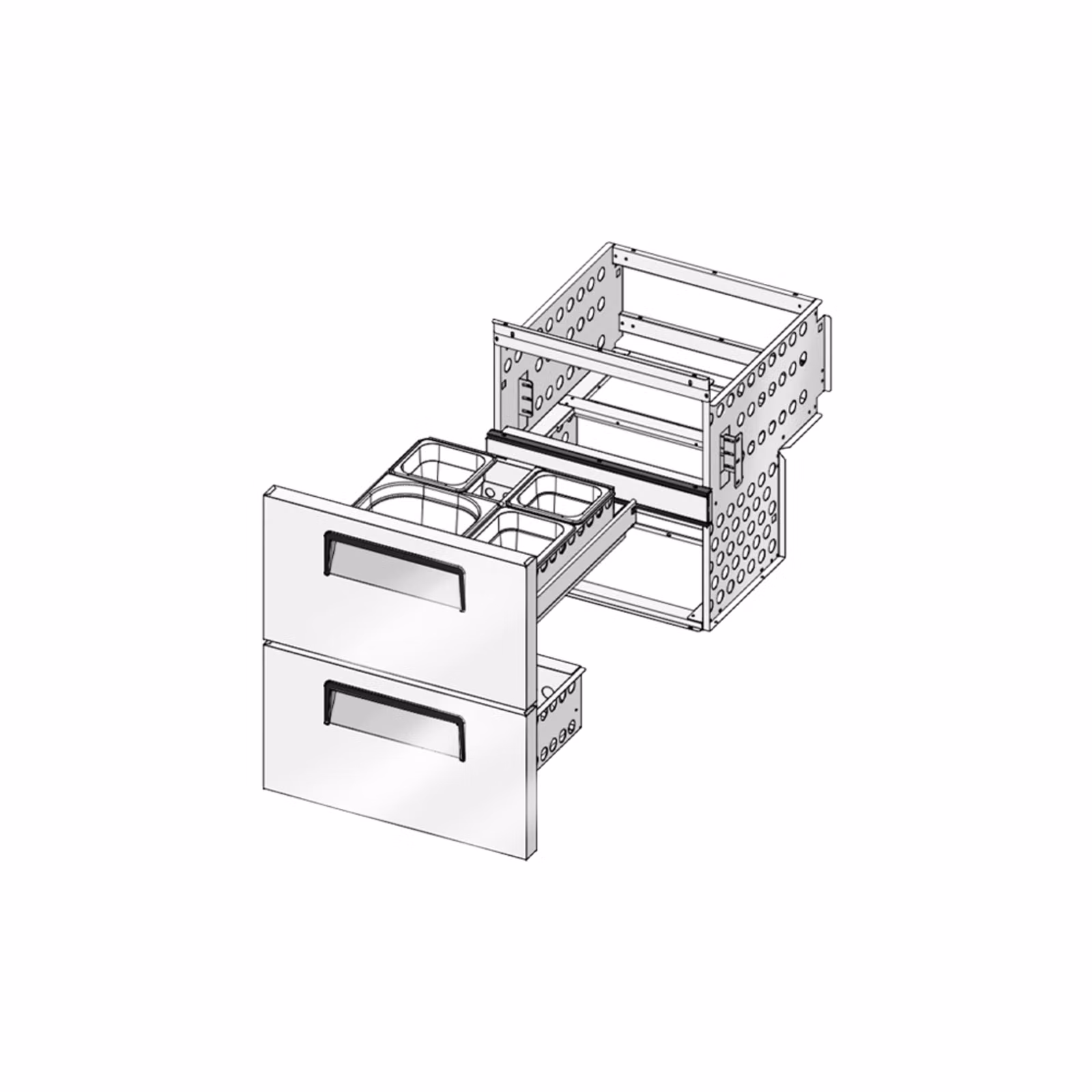

The Atosa MSF8309227A00 Drawer Cartridge is a field-retrofittable, two-drawer module that replaces a standard door section on Atosa MSF8301GR, MSF8305GR, MGF8401GR, and MGF8408GR sandwich prep tables. It installs into the existing cabinet opening and turns that section into refrigerated pan storage.

Highlights

• Fits Atosa MSF8301GR, MSF8305GR, MGF8401GR, and MGF8408GR prep tables as a direct retrofit.
• Top drawer holds three 1/6 and three 1/3 pans, or nine 1/6 pans, at 6 in depth.
• Bottom drawer holds three 1/3 or six 1/6 pans, also at 6 in depth.
• Each drawer is rated for up to 100 lb of loaded weight.
• Also retrofits into Atosa worktop and undercounter refrigerators, not just prep tables.

Atosa MSF8309227A00 Drawer Cartridge Compatibility

This cartridge is built for Atosa's MSF8301GR, MSF8305GR, MGF8401GR, and MGF8408GR prep tables, and it also retrofits into compatible Atosa worktop and undercounter refrigerators wherever a matching door section is used.

Drawer Cartridge Pan Capacity and Load Rating

• Top drawer: holds three 1/6 and three 1/3 pans, or nine 1/6 pans, at 6 in depth.
• Bottom drawer: holds three 1/3 or six 1/6 pans, also at 6 in depth.
• Load rating: up to 100 lb per drawer.

MSF8309227A00 Drawer Cartridge Dimensions

• Width: 27-1/4 in
• Depth: 24 in
• Height: 27-1/4 in (two 13-3/8 in drawer faces stacked)

Application: Replaces a door section with two drawers. Compatibility: Atosa MSF8301GR, MSF8305GR, MGF8401GR, MGF8408GR.
