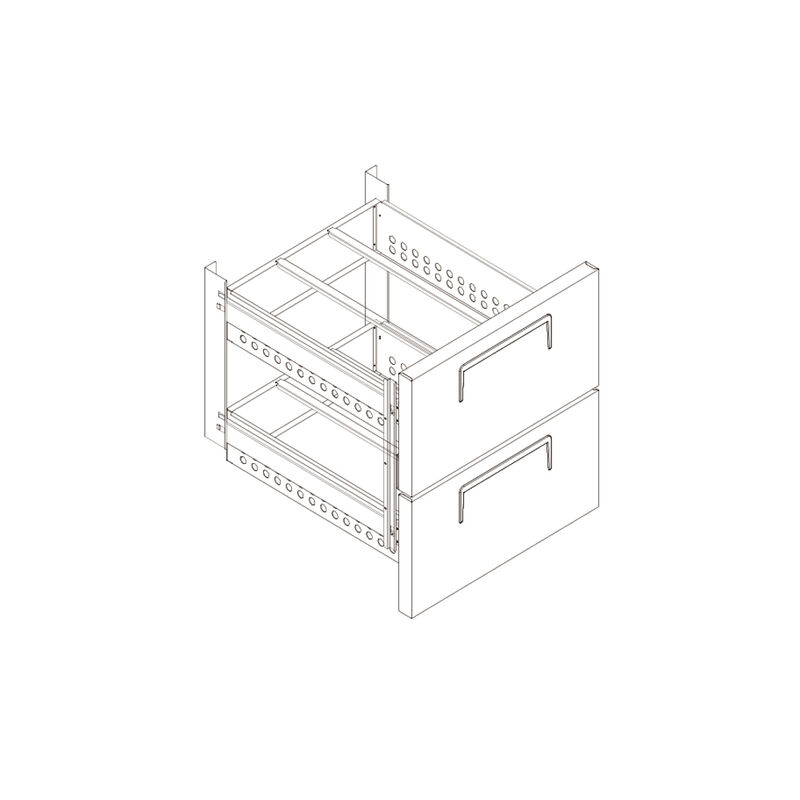

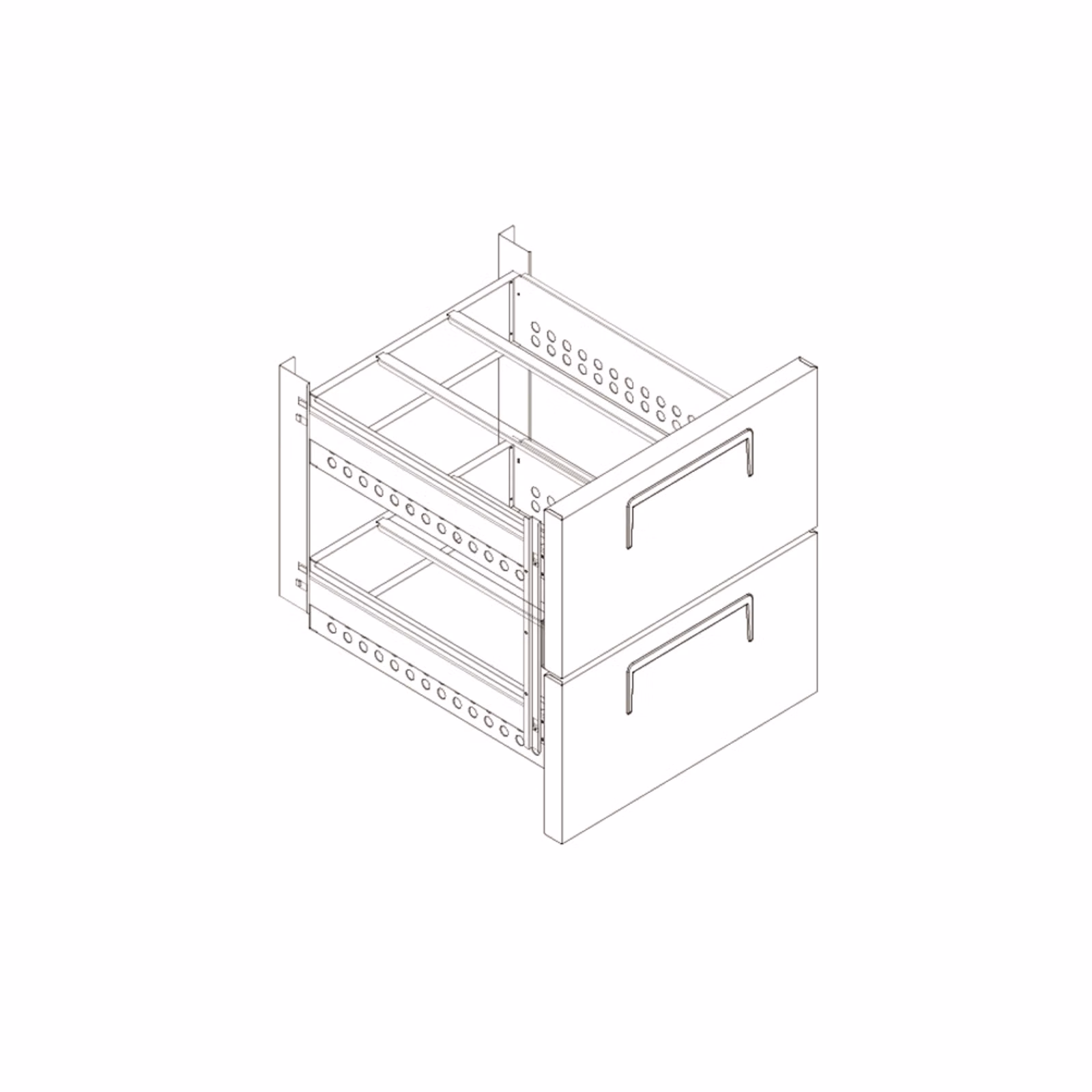

Atosa MPF8204227010 Two-Drawer Refrigerated Cartridge for MPF8201GR Prep Tables

The Atosa MPF8204227010 is a two-drawer refrigerated cartridge that replaces a door section on the Atosa MPF8201GR pizza prep table, turning that opening into pan-ready cold storage. It's a field-retrofittable kit, so you're not buying a new table just to add drawers - you're upgrading the one you already have.

Highlights

• Each drawer holds two full-size 12x20 pans or up to eighteen 1/9 pans, at a 6 inch pan depth.
• Rated for up to 100 pounds of load per drawer.
• Built from stainless steel with recessed handles so the drawers slide without obstruction.
• Fits the Atosa MPF8201GR pizza prep table specifically - not a universal kit.
• Measures 29-1/4 in wide by 28-7/8 in deep by 27-1/4 in tall as a two-drawer unit.

Atosa MPF8204227010 Drawer Kit Construction

The cartridge is built from stainless steel, the same material as the rest of an Atosa prep table, so it matches the cabinet and holds up to daily wipe-downs. Each drawer front has a recessed handle instead of a pull, which lets both drawers slide open side by side without the handles catching on each other.

• Stainless steel: Corrosion-resistant and easy to clean.
• Recessed handles: Drawers open without obstruction.
• Field retrofittable: Installs into the existing door opening on an MPF8201GR.

MPF8201GR Prep Table Pan Capacity

Each drawer runs 6 inches deep and takes pans in a few configurations, so you can set it up for whatever you're prepping that day.

• Two 12x20 full-size pans per drawer.
• Six 1/3-size pans per drawer.
• Twelve 1/6-size pans per drawer.
• Eighteen 1/9-size pans per drawer.
• Rated for up to 100 lb per drawer.

Two-Drawer Cartridge Dimensions

As a complete two-drawer unit, the cartridge measures 29-1/4 in wide by 28-7/8 in deep by 27-1/4 in tall, matching the door opening it replaces on the MPF8201GR.

Installing the MPF8204227010 on Your Prep Table

Since this is a direct swap for a door and shelf section, you don't need to modify the cabinet - pull the door hardware and shelving, then slide the cartridge into the opening. It's a common upgrade for shops that want more organized cold storage without buying a whole new table.

Application: Replaces a door section with two drawers. Compatibility: Atosa MPF8201GR and other select models.
