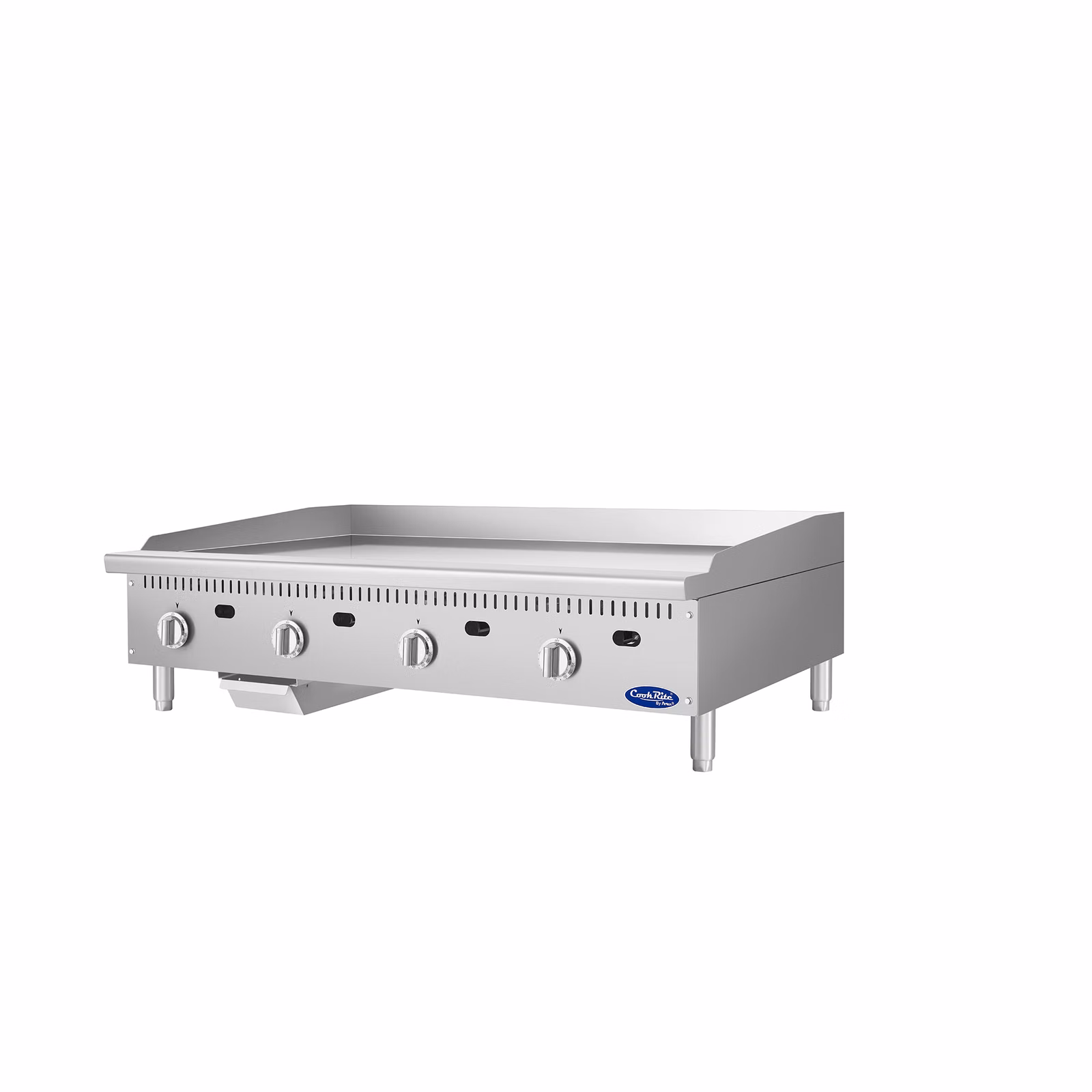

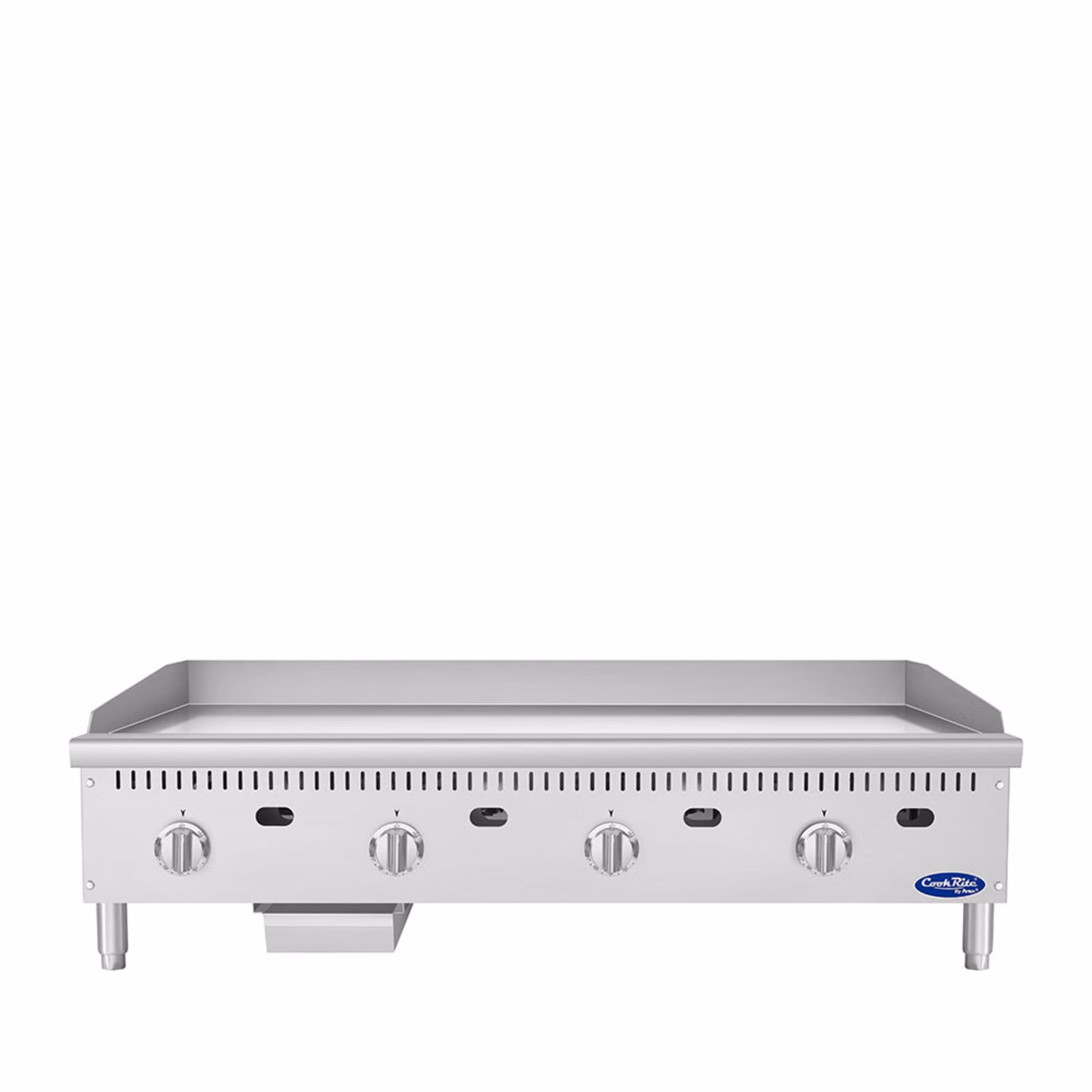

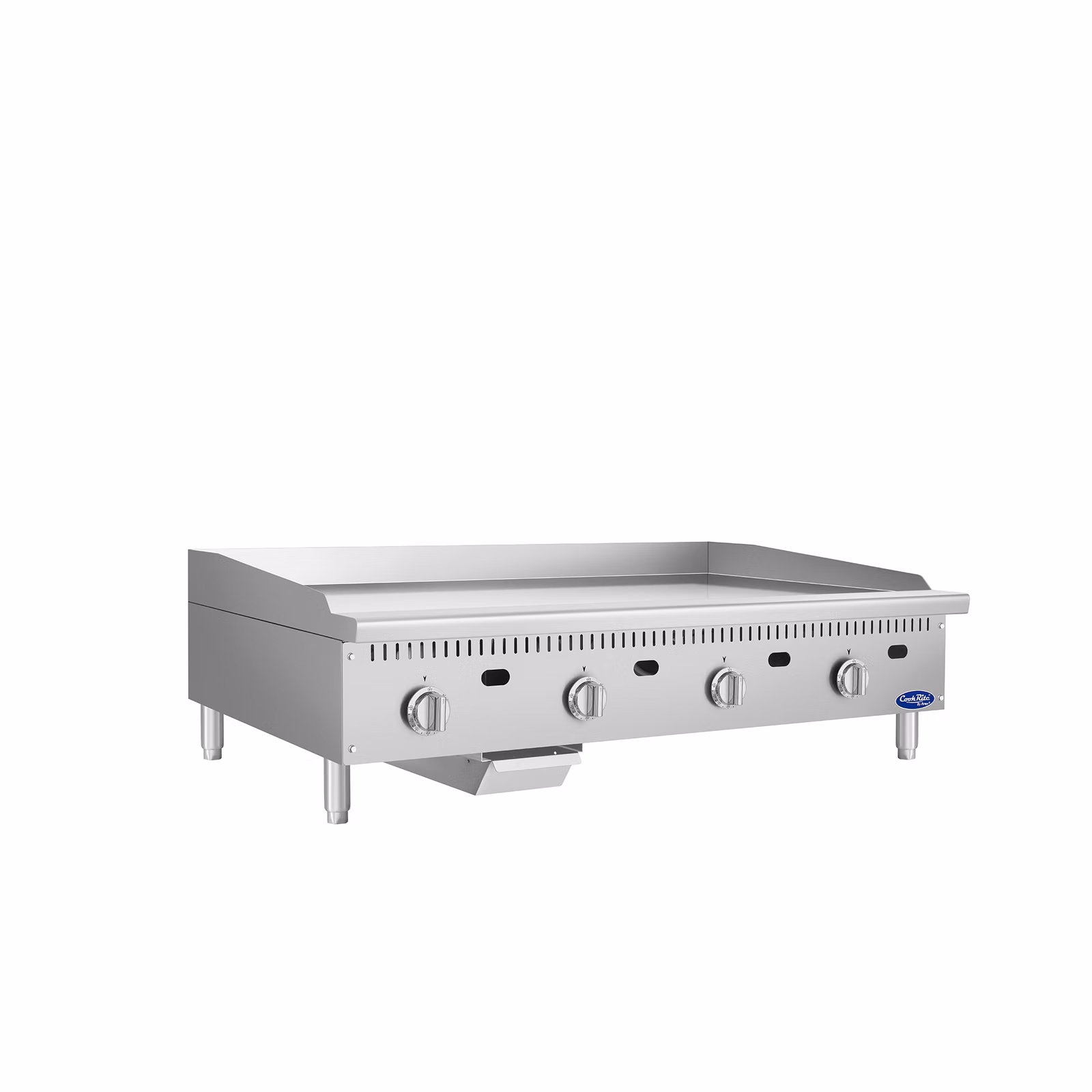

Atosa CookRite ATG-4824-C 48" Thermostatic Chrome Griddle, 120,000 BTU

The Atosa CookRite ATG-4824-C is a 48-inch thermostatic chrome griddle for restaurant, diner and bar kitchens that run a lot of breakfast, burgers and sandwiches off one countertop flat top. Four burners, each with its own thermostat, let you split the plate into hot and cool zones.

Highlights

• Four independent thermostatic controls let you run hot and cool zones across the 48-inch plate.
• The 1-inch chrome plate cuts sticking and flavor transfer and reduces radiant heat in the kitchen.
• Standing pilots shut the gas off automatically if a pilot goes out.
• Each 12-inch section gets a 30,000 BTU burner, 120,000 BTU across the whole griddle.
• A 4-quart stainless grease drawer slides out for cleanup.

Atosa ATG-4824-C Thermostatic Griddle Features

• Chrome plate: the 1-inch thick chrome plated griddle plate reduces radiant heat into the kitchen, cuts down on sticking and flavor transfer, and can help lower energy use.
• Independent thermostats: each 12-inch section has its own control, with a 200 to 450 degree F range.
• Four U-shaped burners: 30,000 BTU each, with standby pilots, for 120,000 total BTU.
• Pilot safety: standing pilot ignition shuts the gas off automatically if the pilot goes out.
• Stainless construction: stainless steel exterior and interior, with 2mm thick, 14-gauge stainless rear and side splashes.
• Grease drawer: a stainless drawer holds 4 quarts and slides out for cleaning.

48 Inch Countertop Gas Griddle Installation

The gas connection is a 3/4-inch NPT at the rear, and a regulator comes standard. Stainless steel legs are standard too. Leave 6 inches of clearance at the rear and 4 to 6 inches at the sides, depending on model. Clearance to non-combustible construction is zero.

The front edge protrudes past the plate, which keeps operators from bumping the hot cooking area. Working height is 12-3/4 inches.

Commercial Chrome Griddle Specifications

• Cooking surface: 48 in W x 24 in D
• Overall size: 48 in W x 32 in D x 15-1/4 in H
• Net weight: 419 lb
• Total output: 120,000 BTU (4 burners at 30,000 BTU)
• Temperature range: 200 to 450 degrees F
• Grease drawer: 6-3/4 in W x 17-1/2 in D x 2-1/2 in H, 4 qt
• Warranty: 1 year parts and labor

It's certified to CSA standards and conforms to ANSI Z83.11 and NSF/ANSI 4. If you want more coverage, an extended warranty of up to 5 years is available from Atosa.
