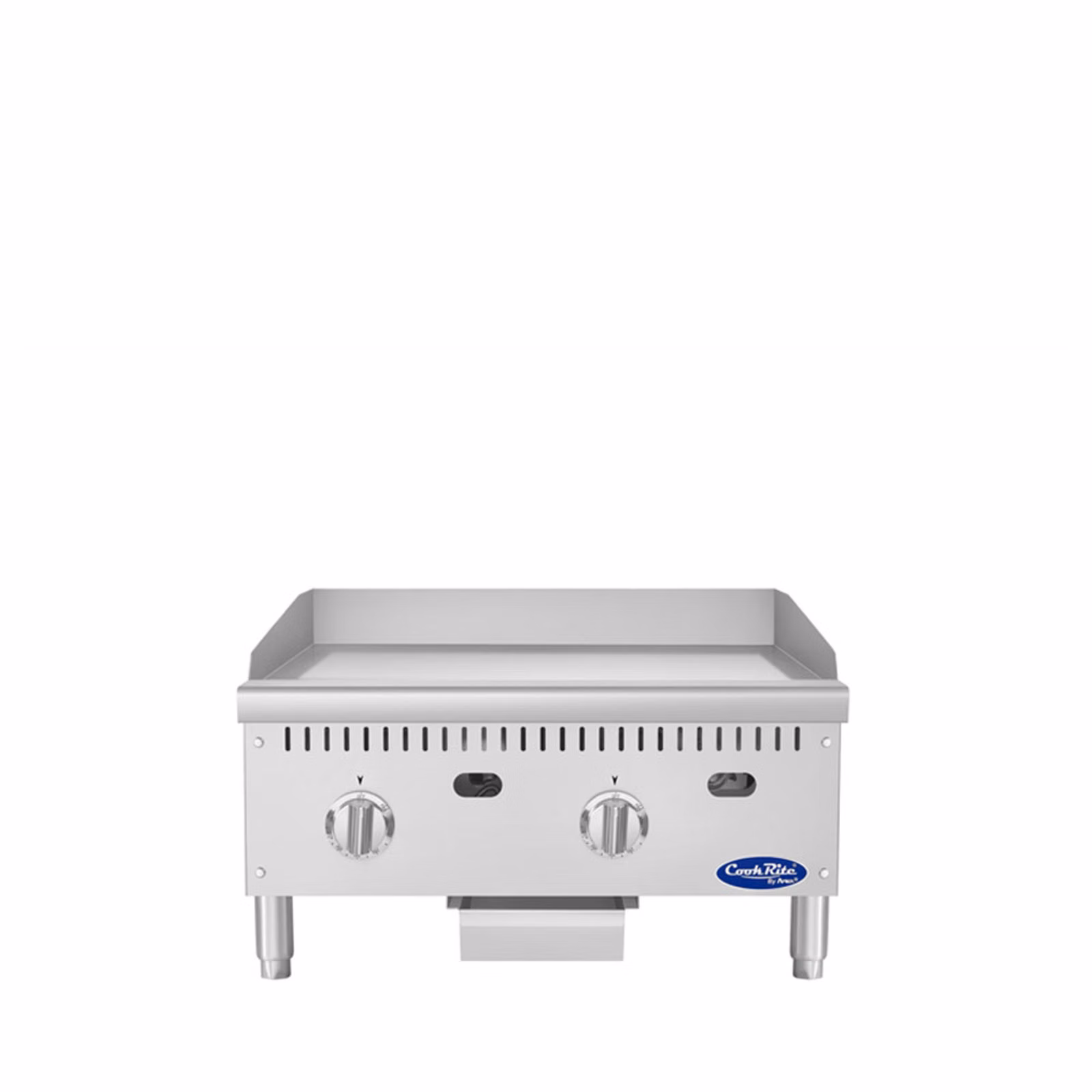

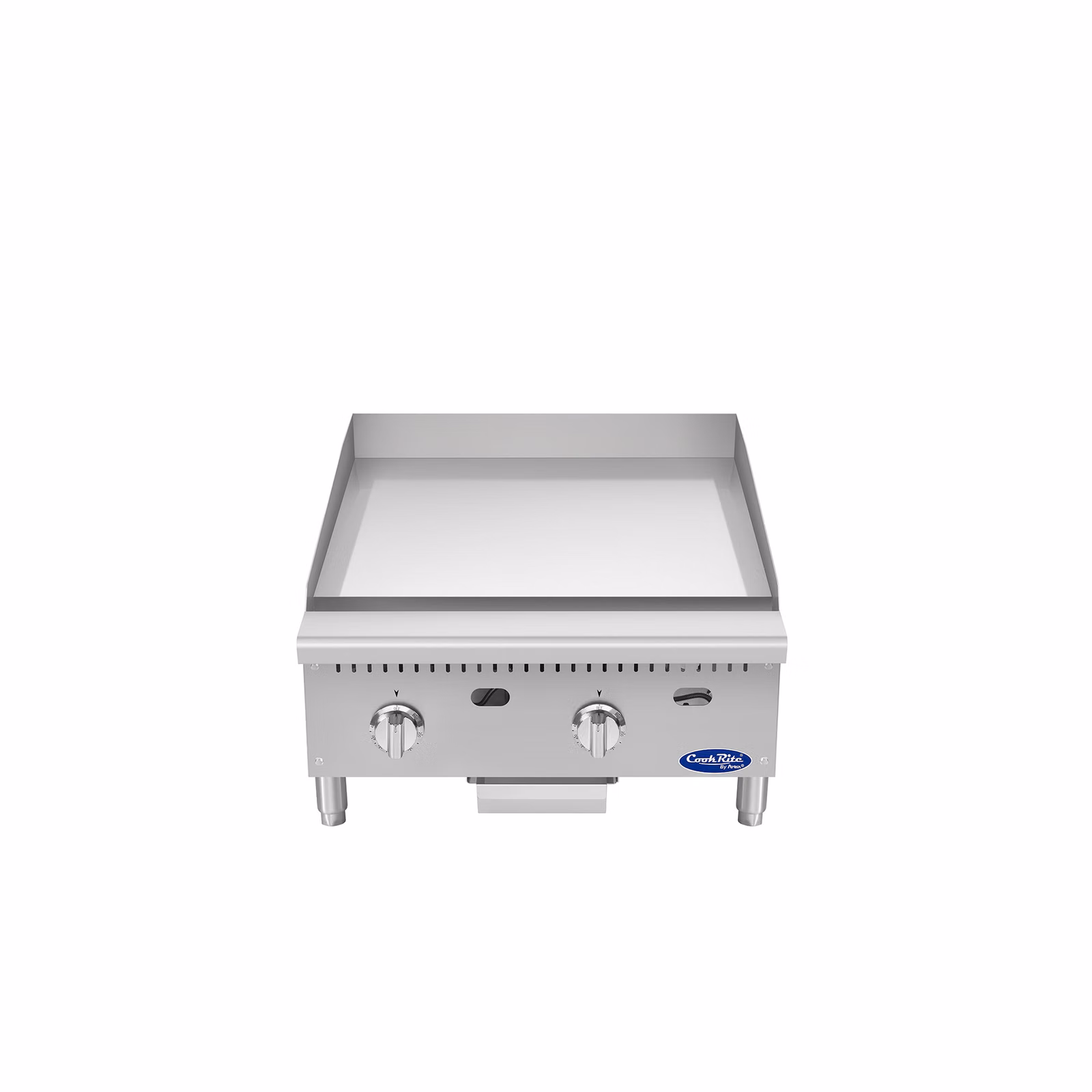

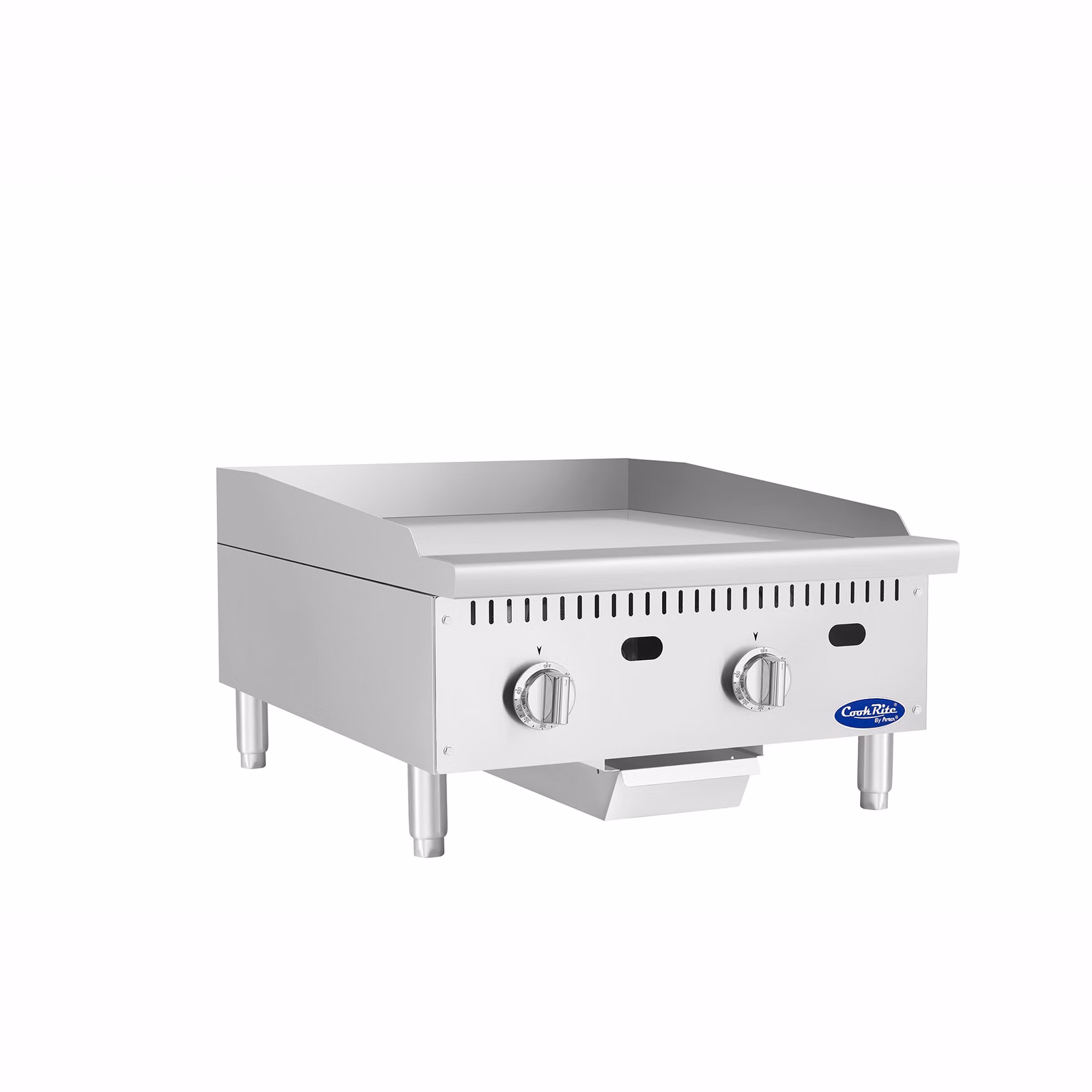

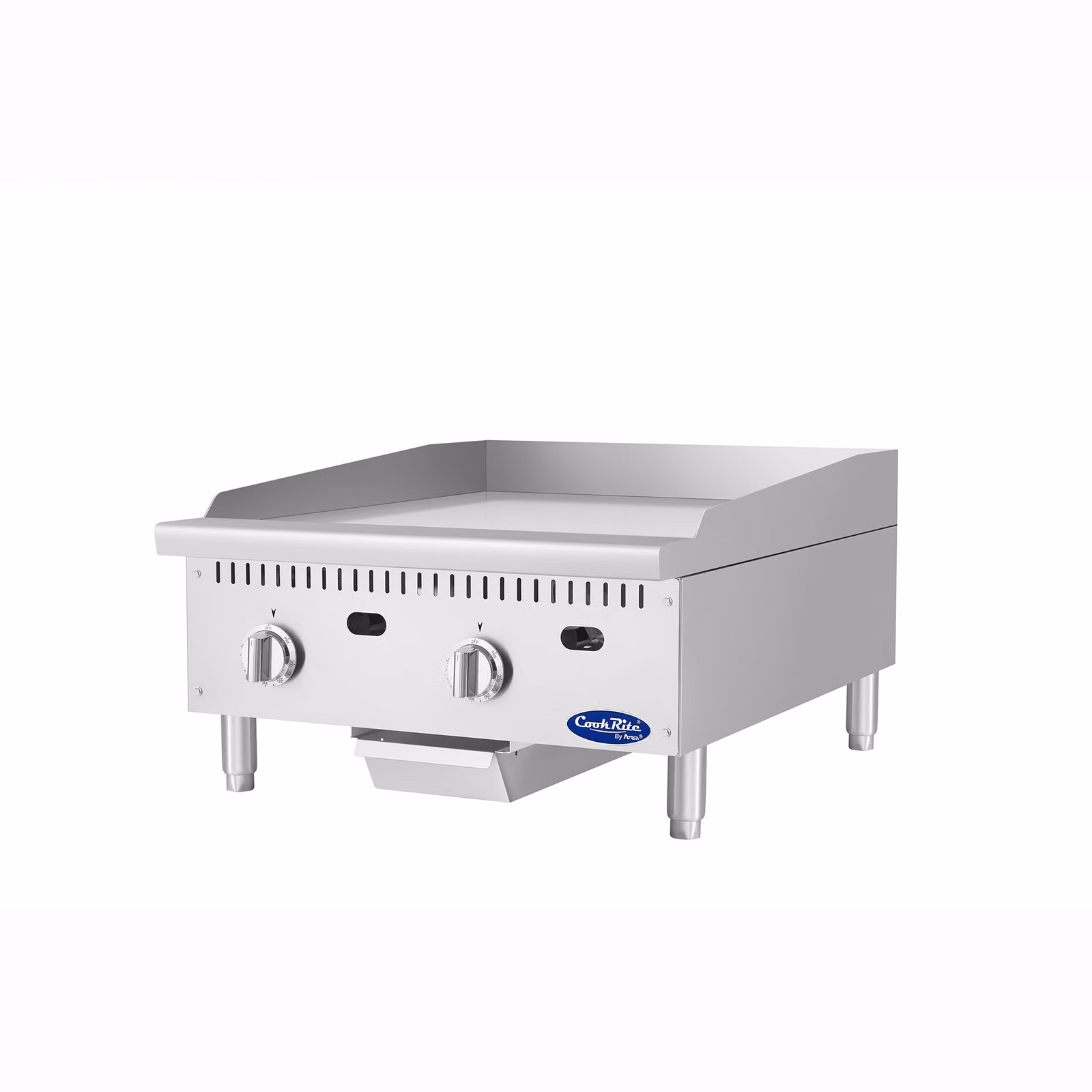

Atosa CookRite ATG-2424-C 24" Thermostatic Chrome Griddle, 60,000 BTU

The Atosa CookRite ATG-2424-C is a 24 in thermostatic chrome griddle for restaurant, diner and bar kitchens that need a solid countertop flat top. It's a gas unit with two 30,000 BTU burners, a 24 in x 24 in cooking area and a 1 in thick chrome plate.

Highlights

• Two independent thermostatic burners let you run one side hotter than the other.
• The 1 in thick chrome plate holds heat and reduces radiant heat in the kitchen.
• Thermostats hold 200 to 450 degrees F for everything from eggs to smash burgers.
• Standing pilots with automatic gas shut-off if the pilot goes out.
• The 4-quart stainless grease drawer pulls out for cleanup.
• Ships with stainless steel legs and a 3/4 in NPT rear gas connection with regulator.

Atosa ATG-2424-C Countertop Griddle Features

• Two thermostatic zones: each 12 in section has its own burner and thermostat, so you can keep one side at a searing temp and the other on a gentler setting.
• Chrome plated 1 in plate: the plating reduces radiant heat into the kitchen and helps limit food sticking and flavor transfer.
• Temperature control: thermostats run from 200 to 450 degrees F.
• Standing pilots: the burners use standby pilots, and gas shuts off automatically if the pilot goes out.
• Splashes and edge: 14-ga stainless rear and side splashes keep grease on the plate, and the protruding front edge keeps operators farther from the hot cooking area.
• Grease drawer: a 4-quart stainless steel drawer catches runoff and slides out for emptying.

Thermostatic Chrome Griddle Specifications

• Model: ATG-2424-C
• Cooking surface: 24 in x 24 in
• Burners: 2 at 30,000 BTU each, 60,000 BTU/h total
• Temperature range: 200-450 F
• Gas connection: 3/4 in NPT rear connection with regulator, natural gas or LP
• Exterior size: 24 in W x 32 in D x 15-1/4 in H
• Working height: 12-3/4 in
• Net weight: 217 lb
• Stainless steel exterior and interior, stainless steel legs
• ETL Listed

Commercial Gas Griddle Installation and Clearances

This is a countertop unit, so it needs a sturdy counter that can carry its 217 lb weight. Rear clearance to combustibles is 6 in, and side clearance is 4 to 6 in. Clearance to non-combustible construction is 0 in.

Pick natural gas or LP when you order, since the regulator is set for one or the other. It's covered by a 1 year parts and labor warranty.
